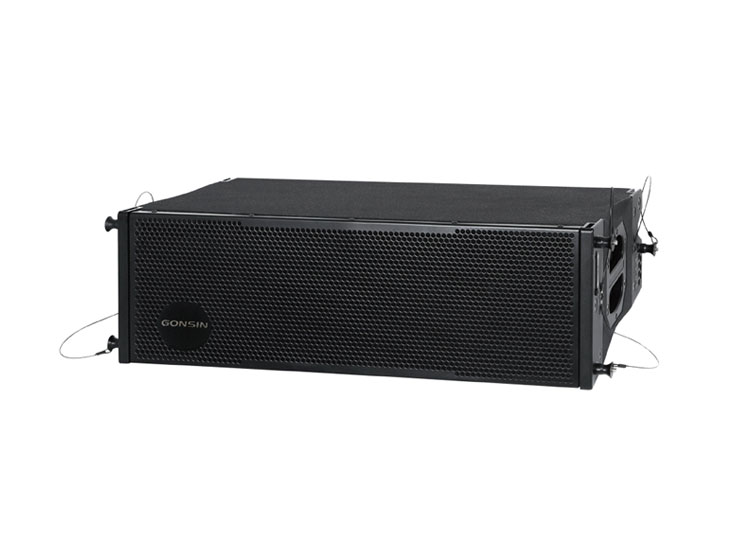

the GX-SP2012DL-Z  is a large-scale two-way crossover system providing a bandwidth of 55Hz-20KHz. Our 12-inch line array speakers are fitted with two British top-level 44 mm voice coil HF drivers coupled to a special constant-path aluminum horn and two 12-inch LF drivers with great dynamic margins. It produces strong penetrating power, clear and thick vocals and super high sound pressure levels. the whole speaker of 12-inch line array is beautiful and concise in shape, and exquisite in appearance, which is an extremely competitive large-scale line array system.



the GX-SP2018DSBB-Z box speaker array uses a custom-made speaker unit that is precisely modulated and the cabinet is a symmetrical compression design. It employs two 18" drivers in a symmetrically compressed enclosure, featuring extremely deep low frequency which has strong power and elasticity at the same time. Combined with GX-SP2012DL-Z, the box speaker line array 12-inch generates a large dynamic, high SPL, clear and delicate sound as well as a tunable full-range response range.



Box Speaker 12 Inch Line Array Technical Specifications

Model	GX-SP2012DL-Z	GX-SP2018DSBB-Z
Impedance	16	4
Frequency range	50Hz~20KHz(-10dB)	35Hz~350Hz(-10dB)
MAX SPL	137dB(EIAJ)	139dB
Power(RMS)	600W/ 2400W(PEAK)	1200W/ 4800W(PEAK)
Horizontal coverage angle	120	/
Vertical coverage angle	10	/
MID-LF unit	2*12 MID Low,	2*18"Subwoofer
	3"High power voice coil	4"High power voice coil
	Ceramic alloy magnet,	Ceramic alloy magnet
	Waterproof paper cone	Waterproof paper cone
HF unit	2*1"Titanium film, Neodymium magnet, 1.75"tube	/
Sensitivity(1m/1W)	103dB	/
Hanger/Installation	Hanger for line array, two handles	36mm stand holder, hanger for line array, two handles
Cabinet	18mm birch plywood, black spray paint, metal mesh
Signal connector	Two parallel socket of SPEAKON
Product Dimensions(W*D*H)	1010*520*350mm	1010*835*550mm
Net weight	46.5Kg	93Kg
Gross weight	49Kg	101.5Kg
