Yttrium oxide



Yttrium oxide Description

CAS No. : 1314-36-9

EINECS No.:215-233-5

Molecular weight: 225.81

HS Code: 2846901100

Molecular Formula:  Y2O3

Package:25kg/50kg per drum or according to clients request.

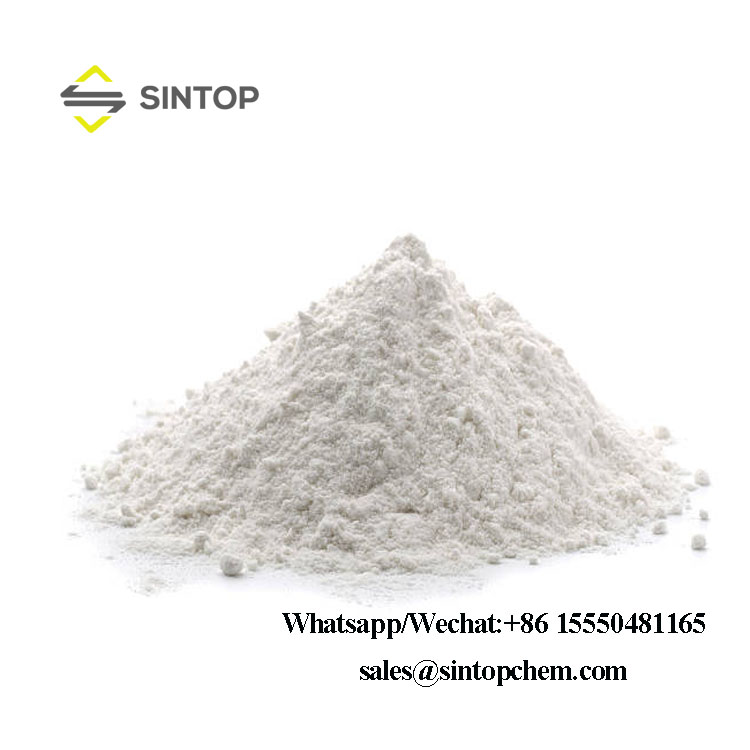

Yttrium oxide Introduction: Chemical formula Y2O3, white with yellow powder, insoluble in water and alkali, soluble in acid.  Mainly used for the manufacture of microwave magnetic materials and military important materials (single crystal;  Yttrium iron garnet, yttrium aluminum garnet and other composite oxides), also used as optical glass, ceramic material additive, high brightness phosphor for large screen TV and other picture tube coatings, etc.



Yttrium oxide Usage:

Mainly used for the production of microwave magnetic materials (single crystal; yttrium iron garnet, yttrium aluminum garnet and other composite oxide), also used as an optical glass, ceramic materials additives, big-screen TV with a high-brightness phosphor and other CRT coatings. Also used in the manufacture of film capacitors and special refractories, as well as high-pressure mercury lamp, a laser, a magnetic bubble storage element and other materials. Added sintering yttrium oxide can effectively reduce the grain size of tungsten alloy.





Yttrium oxide Specifications:



Grade	99.999%	99.99%	99.9%	99%
CHEMICAL COMPOSITION
Y2O3/TREO (% min.)	99.999	99.99	99.9	99
TREO (% min.)	99	99	99	99
Loss on Ignition (% max.)	1	1	1	1
Rare Earth Impurities	Ppm max.	Ppm max.	% max.	% max.
La2O3/TREO CeO2/TREO Pr6O11/TREO Nd2O3/TREO Sm2O3/TREO Eu2O3/TREO Gd2O3/TREO Tb4O7/TREO Dy2O3/TREO Ho2O3/TREO Er2O3/TREO  Tm2O3/TREO Yb2O3/TREO Lu2O3/TREO	1 1 1 1 1 2 1 1 1 2 2 1 1 1	30 30 10 20 5 5 5 10 10 20 15 5 20 5	0.01 0.01 0.01 0.01 0.005 0.005 0.01 0.001 0.005 0.03 0.03 0.001 0.005 0.001	0.03 0.03 0.03 0.03 0.03 0.03 0.1 0.05 0.05 0.3 0.3 0.03 0.03 0.03
Non-Rare Earth Impurities	Ppm max.	Ppm max.	% max.	% max.
Fe2O3 SiO2 CaO Cl- CuO NiO PbO Na2O K2O MgO Al2O3 TiO2 ThO2	3 50 30 100  2 3 2 15 15  15 50 50 20	10 100 100 300 5 5 10 10 15  15 50 50 20	0.002 0.03 0.02 0.05	0.01 0.05 0.05 0.1
