| Brand Name: | na |
|---|---|
| Size: | L60,dia3.8mm |
| Type: | heating element |
| Material: | alumina ceramic, nickel wire |
| Color: | white |
| Model Number: | 6038 |
| Place of Origin: | China (Mainland) |
| resistance range: | 300-400/400-600/600-700 |
| wire diameter: | 0.6,1.0mm |
Quick Details
Specifications

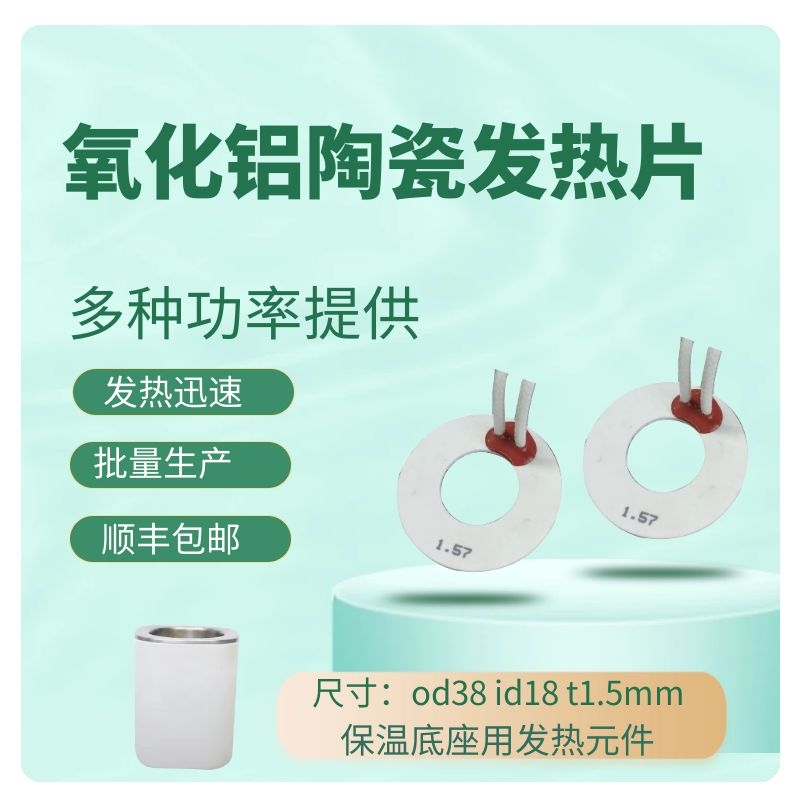

Alumina Ceramic Heating / MCH heating element / Ceramic
Heater for water bottle warmer/ baby milk warmer
Model: |
381815 |
| |
Resistance: |
1.4-1.8/1-1.2/1.08-1.32/1.1-1.3 Ω |
| |
Size: |
Od38, id18, thick1.5mm |
| |
Working voltage: |
7.4V |
| |
Wire leads: |
2 wire leads | ||
Alumina Ceramics Characteristics
Density |
3.68g/cm3 |
Hardness |
80 HRA |
Compressive strength |
850 Mpa |
Bending strength |
290 Mpa |
Thermal Conductivity |
20W/m.K |
Thermal expansion coefficient |
7.210-6/m.K |
Shape & Size
Shape |
Size |
Tolerance | |||
Alumina heater |
Flat plate shape |
Length |
Width |
Thickness |
Length ±1% |
100 or 40 |
0.6-2.0 |
||||
Rod/tubular shape |
Length |
Outer diameter |
Length ±1% | ||
90max |
Φ3-φ20 | ||||
90max |
Φ3-φ20 | ||||
/ |
/ |
/ |
/ |
/ |
/ |
Temperature Characteristics
Lowest environment temperature the MCH heater can
Stand is -50C
Highest surface temperature of the MCH ceramic heater is around 800C
