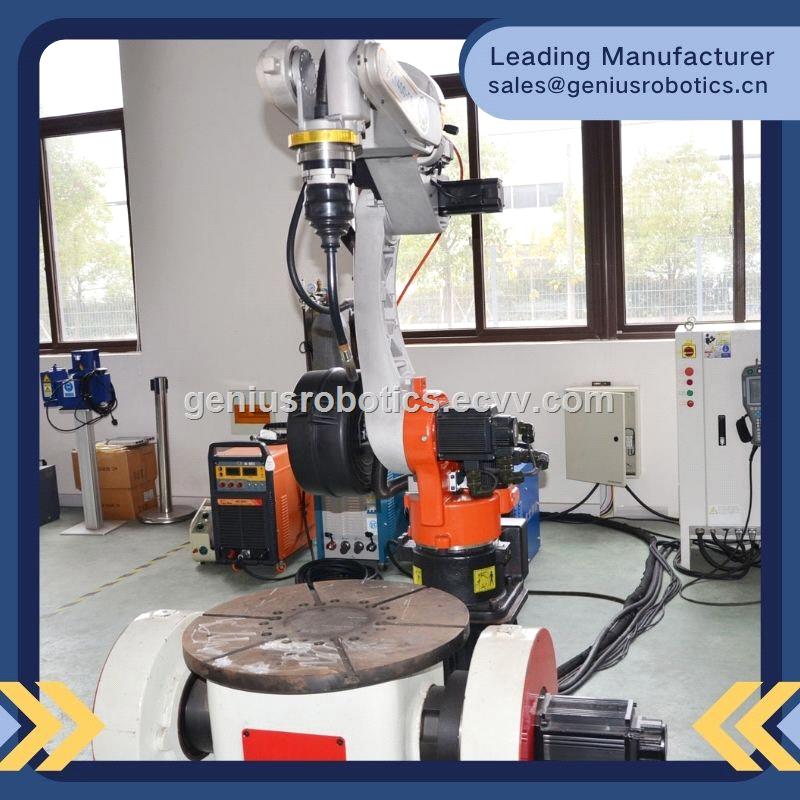

Laser welding robot features

1. the diameter of the solder joint is small, and the heat affected area is small,
Which will not cause deformation of precision products.

2.Can weld small and fine areas, suitable for all sizes of processed parts. after welding,
the workpiece does not change color, no pores and trachoma.

3.Can directly carry out grinding, polishing and EDM treatment without the influence of substrate
Structure deformation.

4. Hand - held laser head can be used with automatic workbench, industrial intelligent manipulator,
Perfect stability and long laser life

5. Excellent beam quality, precision and high efficiency. Fast processing speed,high processing precision,
Environmentally friendly and no consumables. Built - in software is powerful and compatible.

Laser welding robot application

It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.

Weldable material: carbon steel, ordinary alloy steel, stainless steel, laser welding of different steels, stainless steel - low carbon steel, 416 stainless steel -310 stainless steel, 347 stainless steel -HASTALLY nickel alloy, nickel electrode - cold forging steel, different nickel content of bimetal strip, titanium, nickel, tin, copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys, and steel, Kovar alloy and other alloys of the same material.

Laser welding robot technical parameter

Laser type	YAG lamp pump laser generator
Laser wave length	1.064μm
Maximum power	300W	600W
Single pulse maximum output power	150J
Output stability	±5%
Laser transmission mode	Flexible fiber
Power supply	3 phase AC 380V
Maximum input power	8KW	16KW
Size	L750xW1620xH1340
Working table (optional)	Precision electrical slide working table; galvanometer working table; robot device
Positioning accuracy	±0.01mm
Cooling system	Internal & external double circulation heat exchange
Heat exchange power	12.5KW	18KW
Quantity of fiber transmission branches	1 ~ 4
Storable laser type	32 types
Video monitoring ( optional )	High - definition camera + 14 inch monitor
Format supported	dwg
Weight	400kg

Laser Welding Robot Arm Technical Parameter

Distance of 5th axis reaches	1.44m
Number of robot body axes	6
Number of external devices axes	6
Continuous rotation axis	6
Repeat positioning accuracy	0.05mm
Tcp top speed	2.1m/s
Laser type	IPG fiber laser generator
Laser power(standard/optional)	500W/1000W
Power supply	200-600V, 50/60Hz
Weight of robot arm	380kg
Integrated source	Upper arm 23 channel signal
Integrated gas source	Upper arm up to 8bar
