Industrial welding robot manufacturer introduction

Genius Robotics is the overseas sales service center of Zhenkang Welding Company, which was established in 1993, have more than 20years of history in the welding industry.

Our company professionally manufacture wire feeder, RV gear reducer, welding robot and industrial robot, which is engaging in research and development, manufacture and sell.

at present, our company occupies an area of 32,000 square meters, with a plant area of 25,000 square meters. It has 72 senior technicians, 42 technicians directly researching and developing, and total assets of 100 million CNY.

Company has advanced and sophisticated manufacturing equipments and testing instruments, CNC machine tools, machining centers, slow wire cutting machines and other equipment more than 200 units; strict quality assurance system, complete testing means; has developed into production CNC, Intelligent assembly and office automation, have realized the advanced ERP management and first - class production site of modern enterprises. The strict ISO9001 and ISO14001 system certifications provide a powerful guarantee for the company to produce high - quality wire feeders, RV reducers welding robot and other industrial robots.

Why choose our industrial welding robot ?

1. We developed special welding robot, wire feeder and welding gun integrated design, ensure wire feeding smoothly.
2. All core components independently R&D by ourselves, such as servo motor, RV gear reducer, harmonic reducer, wire feeder and got national patents, the coordination and consistency of robot are more better than other companies.
3. Guaranteed quality, better price.
4. High accuracy, repeated positioning accuracy reach to 0.03mm, tracking accuracy to 0.3mm.

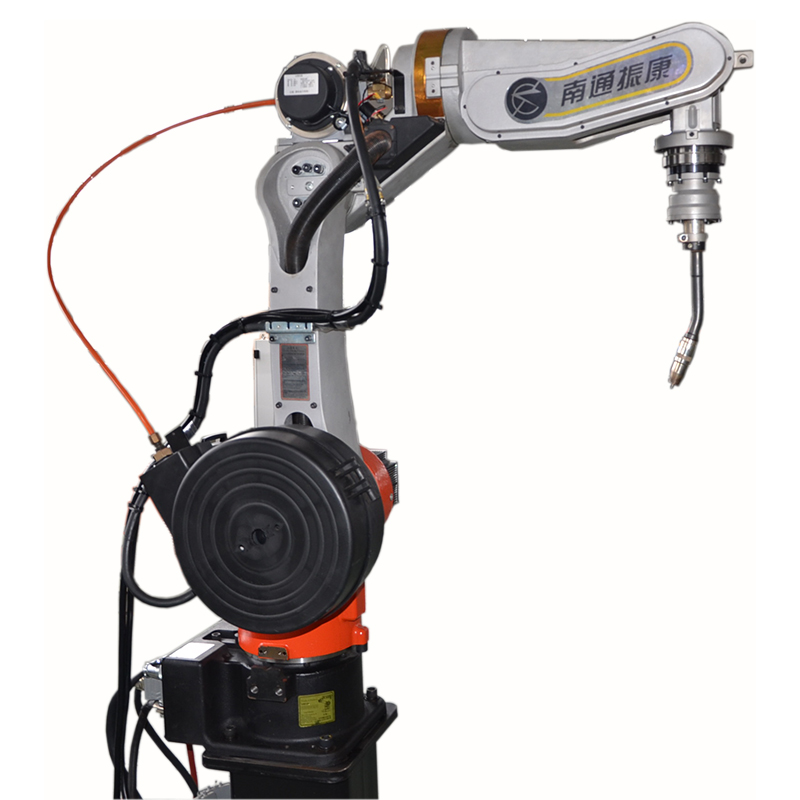

Industrial welding robot specification

Robot model	ZK1400-06
Application	Arc welding
Mounting	Vertical ground installation
Number of axes	6
Payload	6kg
Max working radius	1400mm
Repeated posiontioning accuracy	0.03mm
Maximum joint range	J1	RV reducer                            ±160°
	J2	RV reducer                           +110°, -70°
	J3	RV reducer                           +65°, -120°
	J4	RV reducer                            ±150°
	J5	Hollow harmonic reducer       +105°, -110°
	J6	Hollow harmonic reducer       ±320°
Maximum joint speed	J1	RV reducer                             201.9°/S
	J2	RV reducer                            198.3°/S
	J3	RV reducer                            198.3°/S
	J4	RV reducer                              296.2°/S
	J5	Hollow harmonic reducer        197.5°/S
	J6	Hollow harmonic reducer         247.2°/S
Allowable bending moment  N.M	J4	RV reducer                             9.8N.M
	J5	RV reducer                             9.8N.M
	J6	Hollow harmonic reducer        4N.M
Allowable inertia  Kg.	J4	RV reducer                              0.3kg.
	J5	RV reducer                              0.3kg.
	J6	Hollow harmonic reducer         0.05kg.
Body total weight	KG	185KG
Operating environment	Temperature	0℃ - 45℃
	Humidity	20% - 80%
	Others	Keep away from corrosive gases or liquids or explosive gases, Keep away from water, oil, dust Keep away from source, magnetic field, high frequency signal source
Power capacity	6KVA (Robot) + 24KVA (Welding source)
