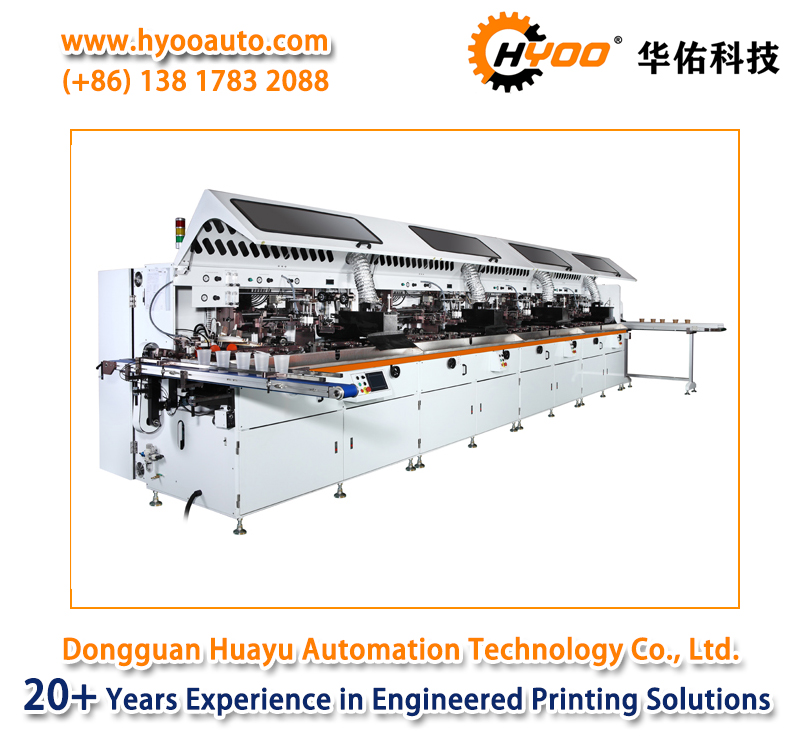

HY-767-4: Four Colors Fully Automatic Screen Printing and UV Curing Production Line

the HY-767-4 belongs to HY-767 serie, it's 4 colors silk screen printing machine, to meet customers' higher requirements on multi colors and faster speed. Suitable for round, oval, square and other objects; entire machine with reasonable structure, convenient debugging and stable operation.


Typical Features of Four Colors Fully Automatic Screen Printing and UV Curing Production Line HY-767-4

           HY-767-4 belongs to HY-767 serie, it's 4 colors silk screen printing machine, to meet customers' higher requirements on multi colors and faster speed.

           Suitable for round, oval, square and other objects; entire machine with reasonable structure, convenient debugging and stable operation.

           Integrate multiple functions such as synchronous automatic feeding, automatic lifting printing, mercury lamp/high-intensity LED/ultraviolet curing, etc., to achieve high-efficiency printing work.

           the electronic components and control system of the printer are imported from well-known German and Japanese brands to ensure higher quality and huger quantity of products.

           through the international famous brand touch screen PLC, it is easy to realize the man-machine dialogue, and the operation is more convenient.

           with the function of pre-alignment of bottles, the printing process is more efficient and accurate.

           Realize automatic monitoring functions such as " no object no printing" and low air pressure alarm through electronic sensors.

           the principle of the whole machine is mechanical synchronization, which can easily realize a fully automated one-stop production line, freely combine single-color, double-color or even multi-color printing.

           Customizable automatic combined production line: Automatic Feeding System, CCD vision inspection, automatic labeling, automatic hot stamping, etc., to meet the high standards of various printing and packaging processes.

Main Specifications of Four Colors Fully Automatic Screen Printing and UV Curing Production Line HY-767-4

Model NO.:	HY-767-4
Round container   size:	Diameter: Φ10-100mm, Height:   30-260mm
Round container   max. Print area:	L 260 x W220mm
Oval container   size:	R: 10-250mm, Height: 30-260mm
Oval container max.   print area:	L 120 x W220mm
Drive:	Mechanical Driven
Control system:	OMRON PLC & Touch Screen
Max. Printing   capacity:	50-70 pcs/min
Registration   tolerance:	+/- 0.2 mm
Infeed conveyor:	1 unit, length: 2 meters
Deionizing device:	4 units
Flame treating   system:	4 units, LP gas
Motor:	ITALY  MOTOVARIO
Print head:	4 units
UV system:	4 units intelligent UV system,   5KW per each
Outfeed conveyor:	1 unit, Length: 2 meters
Frequency   Converter:	OMRON
Pneumatic parts:	FESTO or SMC
Electrical:	380V 3phase 50Hz
Air requirement:	5-7 bar
Air consumption:	85 liter/minute max. (per color)
Power consumption:	5.4 KW/color x 4
Machine   size(LxWxH):	8610x2730x2100mm
Weight:	1500 KG x4

Notes: Specifications are subject to change without further notification, please contact with Huayu Automation before ordering.
