| Plate Type: | Screen Printer |
|---|---|
| Automatic Grade: | Automatic |
| Usage: | Cloths Printer,Label Printer,Paper Printer,Tube Printer |
| Brand Name: | HYOO |
| Condition: | New |
| Plate Type: | HY-767-6 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year |
| Certification: | CE |
| Weight: | 1600 KG |
| Dimensions(L*W*H): | 2300x1800x1700mm x 6 |
| Gross Power: | 5.4 KW |
| Voltage: | 380V 3phase 50Hz |
| Color & Page: | Multicolor |
| Model Number: | HY-767-6 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

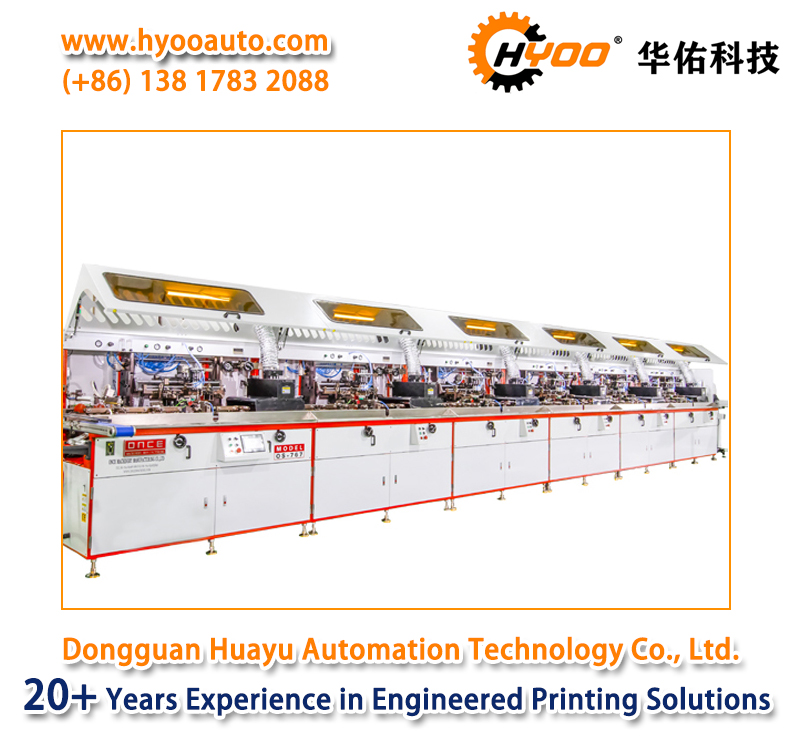

HY-767-6: Six Colors Automatic UV Bottle Silk Screen Printing and Hot Stmaping Machine
the HY-767-6 is 5 color automatic UV bottle screen printing machine + 1 color Hot Stamping, Fast print speeds up to 4200 bottles per hour, Accurate color to color registration, Prints on round, oval and square bottles, Intelligent UV system saves energy consumption,Integrated anti-static dust blowing and bottle
surface flame treating
the HY-767-6 is 5 color automatic UV bottle screen printing machine + 1 color Hot Stamping, Fast print speeds up to 4200 bottles per hour, Accurate color to color registration, Prints on round, oval and square bottles, Intelligent UV system saves energy consumption,Integrated anti-static dust blowing and bottle
surface flame treating
Typical Features of Six Color Automatic UV Silk Screen Cylindrical and Hot Stamping Machine HY-767-6
5 color automatic UV bottle screen printing machine + 1 color Hot Stamping
Fast print speeds up to 4200 bottles per hour
Accurate color to color registration
Prints on round, oval and square bottles
Mechanical driven bottle transport in high stability
Omron PLC and touch screen controlled
Italy SITI brand main motor
Intelligent UV system saves energy consumption
Integrated anti-static dust blowing and bottle surface flame treating
Main Specifications of Six Color Automatic UV Silk Screen Cylindrical and Hot Stamping Machine HY-767-6
| Model NO.: | HY-767-6 |
| Round container size: | Diameter: φ10-100mm, Height: 30-260mm |
| Round container max. Print area: | L 260 x W220mm |
| Oval container size: | R: 10-250mm, Height: 30-260mm |
| Oval container max. Print area: | L 120 x W220mm |
| Drive: | Mechanical Driven |
| Control system: | OMRON PLC & Touch Screen |
| Max. Printing capacity: | 70 pcs/min |
| Registration tolerance: | +/- 0.2 mm |
| Infeed conveyor: | 1 unit, length: 2 meters |
| Deionizing device: | 1 unit |
| Flame treating system: | 1 unit, LP gas |
| Motor: | ITALY MOTOVARIO |
| Print head: | 1 unit |
| UV system: | 1 unit intelligent UV system, 5KW per each |
| Outfeed conveyor: | 1 unit, Length: 2 meters |
| Frequency Converter: | OMRON |
| Pneumatic parts: | FESTO or SMC |
| Electrical: | 380V 3phase 50Hz |
| Air requirement: | 5-7 bar |
| Air consumption: | 85 liter/ minute max. (per color) |
| Power consumption: | 5.4 KW/color x 6 |
| Machine size(LxWxH): | Main machine: 2300x1800x1700mm x 6 |
| Weight: | 1600 KG x 6 |
Notes: Specifications are subject to change without further notification, please contact with Huayu Automation before ordering.
