Application: | Computer |
---|---|
Type: | Line Interactive |
Protection: | Overcurrent |
Phase: | Single Phase |
Brand Name: | SCU |
Quick Details
Specifications
with small size, large capacity and high efficiency can meet the needs of high power density!
DSP series (1-80KVA)
Why choose SCU?
SCU DSP series UPS and lithium ion battery combined, which have below great features.
Scu feature icon
Lithium ion battery access
Bi-directional active equalization BMS control;
Perfect battery charge and discharge management strategy;
Parallel battery pack to extend backup time;
Scu feature icon
Good performance
ECO mode, efficiency 99%;
19 inch rack mount UPS design;
Isolation of cold and hot air duct, stepless speed control;
Scu feature icon
Manageability
LCD display,provide easy-to-read status;
Provide EPO remote emergency power off interface;
Built in parallel kit, only need parallel line to achieve 1 + 1 parallel;

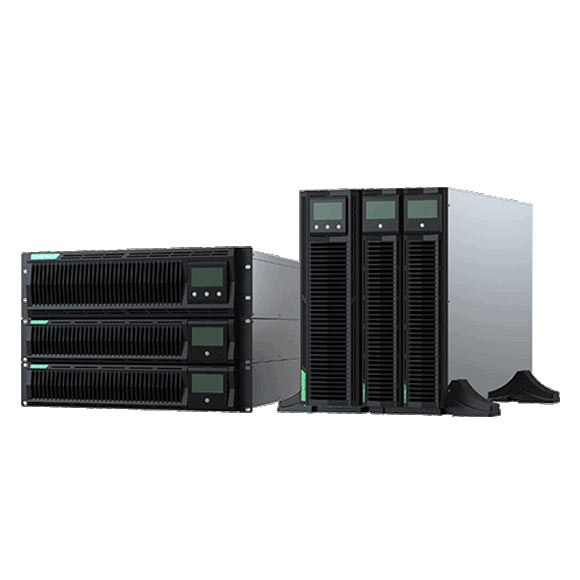

Rack Mount UPS Power Supply types
10kva/15kva/20kva UPS
DSP-10KVA/15KVA/20KVA-LI
Max. Capacity: 10KVA/15KVA/20KVA
Size: 430*600*132(W*D*H)mm
Protection degree: IP20
Specifications of 10kva rack mount UPS
Model |
DSP-10KVA-LI |
DSP-15KVA-LI |
DSP-20KVA-LI | |
Mains input |
Input mode |
3Ph+N+PE | ||
Input voltage |
380V/400V/415V | |||
Input frequency |
50Hz±10%,60Hz±10% | |||
Input PF |
0.99 | |||
Lithium ion pack |
Battery capacity |
ECM-240B10P4;240V/10AH | ||
Battery number |
2 | |||
Back up time |
30mins |
20mins |
10mins | |
BMS |
Bidirectional Active Equalization | |||
AC output |
Output voltage |
220V/230V/240V;380V/400V/415V | ||
Output PF |
0.9 | |||
Overload |
Operate 10mins with 125% load | |||
AC/AC efficiency |
≥94% at online mode;≥99% at ECO mode; |
