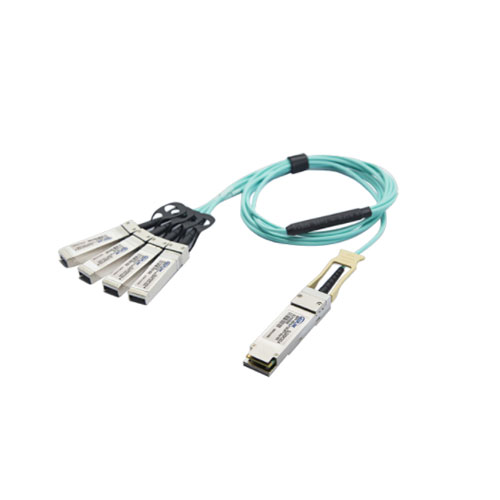

40G   is a high data rate parallel active optical cable (AOC), to overcome the bandwidth limitation of traditional copper cable. the AOC is terminated with a QSFP28 module at one end and four SFP28 modules at the other. with the QSFP28 terminal, 40g aoc cable offers 4 independent data transmission channels and 4 data receiving channels via an 8-core multimode fiber cable, each capable of 25Gb/s operation. The fiber cable then fans out to four dual-core fiber cables, each of which is terminated with an SFP28 module. Consequently, an aggregate data rate of 100Gb/s over up to 100m transmission can be achieved by this qsfp+ active optical cable product, to support the ultra-fast computing data exchange.



the product is designed with form factor, optical/electrical connection according to the QSFP28 and SFP28 Multi-Source Agreements (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.



Compatibility of QSFP+ 40G to 4*10G SFP+ XXm AOC

QSFP-4x10G AOC15M	15M 40G QSFP+ to 4x10G SFP+ AOC
QSFP-4x10G AOC10M	10M 40G QSFP+ to 4x10G SFP+ AOC
QSFP-4x10G AOC7M	7M 40G QSFP+ to 4x10G SFP+ AOC
QSFP-4x10G AOC5M	5M 40G QSFP+ to 4x10G SFP+ AOC
QSFP-4x10G AOC3M	3M 40G QSFP+ to 4x10G SFP+ AOC



Technical Specification of QSFP+ 40G to 4*10G SFP+ XXm AOC Transceiver



Absolute Maximum Ratings

the operation in excess of any absolute maximum ratings might cause permanent damage to this module.



Parameter	Symbol	Min	Max	Unit	Notes
Storage Temperature	TST	-40	85	degC
Relative Humidity(non-condensing)	RH	0	85	%
Operating Case Temperature	TOPC	0	70	degC
Supply Voltage	VCC	-0.3	3.6	V
Input Voltage	Vin	-0.3	Vcc+0.3	V



Recommended Operating Conditions and Power Supply Requirements

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Operating Case Temperature	TOPC	0		70	degC	Operating Case Temperature
Power Supply Voltage	VCC	3.13	3.3	3.47	V	Power Supply Voltage
Data Rate	DR		10.3	11.3	Gbps	Data Rate
Data Speed Tolerance	?DR	-100		100	ppm
Link Distance with OM3 fiber	D	0		100	m
Control* Input Voltage High	Vih	2		VCC+0.3	V
Control* Input Voltage Low	Vil	-0.3		0.8	V
I2C Serial Interface frequency	fs			400k	Hz
Power Supply Noise				50	mVpp
Receiver Differential Data Output Load				100	mVpp
