Brand Name: | Gearlink |
---|---|
Type: | Doppler Ultrasound Equipment |
Warranty: | sfp 1gbps |
Portable: | sfp 1gbps |
Certification: | sfp 1gbps |
Quick Details
Specifications

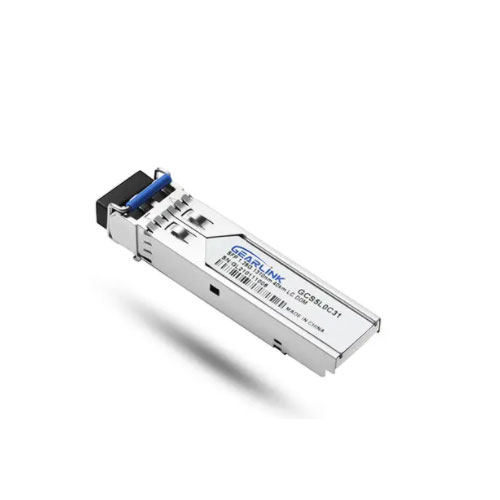

GearLink's gigabit optical transceiver GCS5L0C31 is used in Gigabit Ethernet, dual-channel, and bidirectional transmission synchronous optical network (SONET). It conforms to multi-source protocol and SFF-8472, with digital diagnostic monitoring(DDM) function. The package of GCS5L0C31 is SFP with LC interface, the rate is 1.25G, the optical wavelength is 1310NM, and the maximum transmission distance is 40KM.
Compatibility of SFP 1.25G 1310nm 40Km LC Transceiver
GLC-EX-SMD |
1000BASE- 1310nm 40km |
GLC-EX-SM |
1000BASE-EX-SFP 1310nm 40km |
Technical Specification of SFP 1.25G 1310nm 40Km sfp lc lx Transceiver
Absolute Maximum Ratings
Parameter |
Symbol |
Unit |
Min |
Max |
Storage Temperature Range |
Ts |
oC |
-40 |
85 |
Relative Humidity |
RH |
% |
5 |
95 |
Power Supply Voltage |
Vcc |
V |
-0.5 |
4 |
Recommended Operating Conditions
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Case Operating Temperature Range |
Tc |
oC |
-10 |
|
70 |
Power Supply Voltage |
Vcc |
V |
3.135 |
3.3 |
3.465 |
Data rate |
|
GB/s |
- |
1.25/1.0625 |
- |
If you want to know more aboutGlc ex SMD price, please contact us.
More details ofLc to sfp adapter , please visit our website.
as an, we have types of for sale, anything you need, please leave us a message.
