| Plate Type: | Screen Printer |
|---|---|
| Automatic Grade: | Automatic |
| Usage: | Cloths Printer,Label Printer,Paper Printer,Tube Printer |
| Brand Name: | HYOO |
| Condition: | New |
| Plate Type: | HY-HR218 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 Year |
| Certification: | CE |
| Color & Page: | Multicolor |
| Model Number: | HY-HR218 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

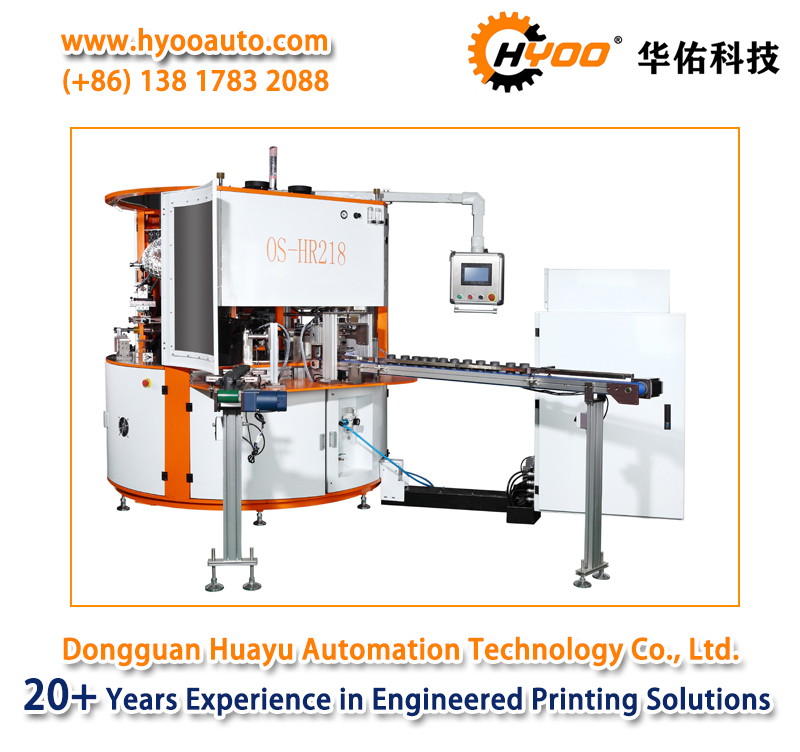

HY-HR218: Two Colors Automatic Servo Screen Printing and UV Curing Production Line
HY- HR218 is suitable for surface screen printing of various shapes bottles such as cylindrical, square, oval, triangle, etc. (daily chemical cream jars, beverage bottles etc.); suitable for UV and solvent ink printing. It is a two-color automatic screen printing production line, which is suitable for the surface screen printing of cylindrical, wide-mouthed and hollow cans with internal positioning points or locating teeth.
HY- HR218 is suitable for surface screen printing of various shapes bottles such as cylindrical, square, oval, triangle, etc. (daily chemical cream jars, beverage bottles etc.); suitable for UV and solvent ink printing. It is a two-color automatic screen printing production line, which is suitable for the surface screen printing of cylindrical, wide-mouthed and hollow cans with internal positioning points or locating teeth.
Suitable for surface screen printing of various shapes bottles such as cylindrical, square, oval, triangle, etc. (daily chemical cream jars, beverage bottles etc.); suitable for UV and solvent ink printing
this model is a two-color automatic screen printing production line, which is suitable for the surface screen printing of cylindrical, wide-mouthed and hollow cans with internal positioning points or locating teeth.
High-precision divider, mechanical transmission mechanism, servo mechanism for printing, no printing gears, parameterized setting, fast speed, stable and reliable quality, convenient and quick debugging, and wider applicability
Ionic wind dedusting
Flame treatment
Pre-positioning, product positioning, printing pre-positioning
UV light curing system, fast drying in seconds, increase the adhesion of the ink
the main structure design is more reasonable, making major optimizations than the existing domestic machines, and can achieve stable and efficient production
Main Specifications of Two Colors Automatic Servo Screen Printing and UV Curing Production Line HY- HR218
| Model NO.: | HY- HR218 |
| Max. Print size (DiameterxLength): | 80mm, L 150mm |
| Max. Printing speed: | 40-50 pcs/min |
| Registration tolerance: | +/- 0.2mm |
| Drive: | Mechanical driven |
| Control system: | OMRON PLC & Touch Screen |
| Stations: | 18 stations |
| Flame treating system: | 2 units |
| Print head: | 2 units |
| UV system: | 2 units |
| Motor: | ITALY SITI |
| Pneumatic parts: | Japan SMC |
| Photoelectric Sensor: | Japan Keyence |
| Frequency Converter: | Japan OMRON |
| Indexer | Japan SANKYO |
| Electrical Supply: | 380V 3phase 50Hz/60Hz |
| Air requirement: | 5-6 bar |
| Power consumption: | 20 KW |
| Printer Dimension (LxWxH): | 4800x2600x2800mm |
| Weight: | 2650 KG |
Notes: Specifications are subject to change without further notification, please contact with Huayu Automation before ordering.
