| Plate Type: | Screen Printer |
|---|---|
| Automatic Grade: | Automatic |
| Usage: | Cloths Printer,Label Printer,Paper Printer,Tube Printer |
| Brand Name: | HYOO |
| Condition: | New |
| Plate Type: | HY-R4 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 Year |
| Certification: | CE |
| Color & Page: | Multicolor |
| Model Number: | HY-R4 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

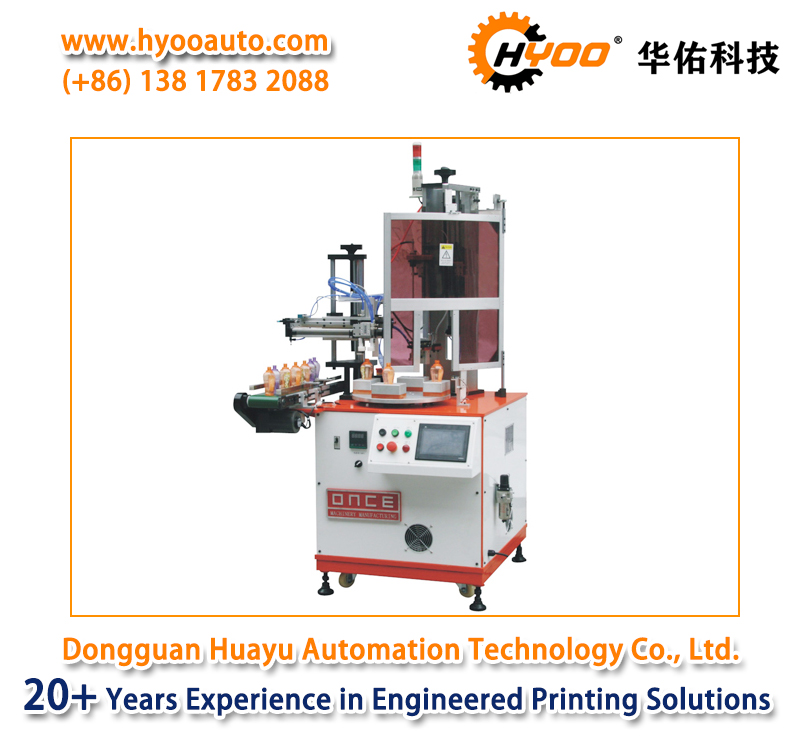

HY-R4: High Voltage Electrostatic Leaking Tester
the HY-R4 High Voltage Electrostatic Leaking Tester is specially designed for air leakage testing of injection port of bottles(bottle material should be insulating), widely used in cosmetics, cleaing products, medical industry, food and other fields. Having testing function to test if the bottle is in the right position, can distinguish defective products quickly and accurately.
the HY-R4 High Voltage Electrostatic Leaking Tester is specially designed for air leakage testing of injection port of bottles(bottle material should be insulating), widely used in cosmetics, cleaing products, medical industry, food and other fields. Having testing function to test if the bottle is in the right position, can distinguish defective products quickly and accurately.
Specially designed for air leakage testing of injection port of bottles(bottle material should be insulating), widely used in cosmetics, cleaing products, medical industry, food and other fields
Having testing function to test if the bottle is in the right position, can distinguish defective products quickly and accurately.
Unloading conveyor with stepless speed regulation can make the machine meet requirements of different container and testing time.
Equiped with world famous PLC controller and touch screen, so that the whole operation becomes much more easy and covenient.
Main Specifications of High Voltage Electrostatic Leaking Tester HY-R4
| Model NO.: | HY-R4 |
| Shape of Tested Objects | Cylinder and Oval |
| Max. Height of Tested Bottle | 300mm |
| Min. Height of Tested Bottle | 30mm |
Max. Outside Dia. of Testing Bottle |
φ100mm |
Min. Inside Dia. of Testing Bottleneck |
φ8mm |
| Max. Running Speed | 1500pcs/Min |
| Power Supply | AC220V 2Phase 50Hz |
| Total Power | 0.6KW |
| Air Pressure | 5-7kg/cm2 |
| Dimension | 1200L * 1000W * 1900H mm |
| Weight | 380Kg |
Notes: Specifications are subject to change without further notification, please contact with Huayu Automation before ordering.
