1. in recent years, the electric  has great advantages in the clean production and energy saving of blow molded products, and automatic blow molding machine's research and development progress are relatively fast.



for some blow molding production workshops that require a high degree of cleanliness, electric blow molding units will be one of the first choices.



2. Raw material plasticization, extrusion, mold shifting, mold closing, and blow molding are all driven by high-performance servo motors, completely replacing traditional hydraulic drive technology, energy-saving and environmentally friendly, and fully automatic blow molding equipment and  are excellent equipment for modern industrial production.



3. at present, the general electric hollow molding machine is mainly used in some high-end blow molding product industries and industries that require highly clean production. with the further reduction of automatic blowing machine and fully automatic blow moulding machine equipment manufacturing price and costs, it may be promoted to other blow molding product industries.



4. at present, large and medium-sized (high tonnage clamping force) electric hollow forming units are relatively rare. with the increasing requirements for the clean production of some large and medium-sized plastic barrels, the development of large and medium-sized electric hollow molding machines will likely be accelerated. To seize the development time is to seize the market.

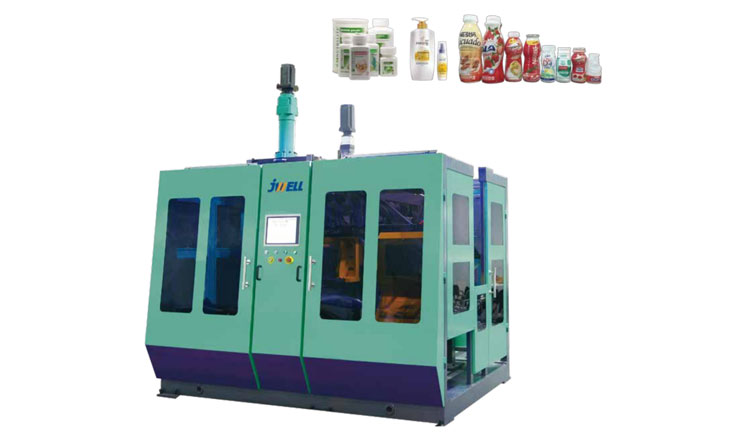

Description about Automatic Blow Molding Machine

Item	Description
Place of origin	China
Brand name	JWELL
Model number	Electric Blow Molding Machine
Minimum order quantity	520/650/850
Packaging details	Wooden pallet packing
Delivery time	90days
Payment terms	TT. LC



Specifications of Automatic Blow Molding Machine

Technical Details
Model	JWZ-EBM-520	JWZ-EBM-650	JWZ-EBM-850
Main screw diameter	75/80	80/90	90/100
L/D	25:1	25:1	25:1
Screw speed	25~75r/min	25~75r/min	25~75r/min
Main screw diameter	75/80mm	80/90mm	90/100mm
Max plasticizing capacity	95-115 kg/h	115-140 kg/h	140-180  kg/h
Mould Moving	520mm	650	850
Mould-opening stroke	2x100mm	2x120mm	2x120mm
Clamping force	120kN	240kN	300kN
Max.Mould size	400x380mm	550x400mm	750x400mm



Automatic Blow Molding Machine Application



Automatic Blow Molding Machine Application

 is researching and developing a fully electric Blow molding machine to meet the Food, Medical, Health, and other industries' requirment for the machine and product clean. Compare with the traditional Hydraulic type blow molding machine, The fully electric blow molding machine adopts fully servo-driving motor, energy-saving about 30%.No oil-leakage. Fully automatic blow moulding machine has low noise and can keep the workshop.



Automatic Blow Molding Machine Performance and Advantages



Energy consumption

the use of servo motors and servo drives can effectively save energy, and the energy-saving efficiency is generally 50% to 70% (depending on the product).



Cleanliness and noise

All servo motors are used, and there is no noise caused by hydraulic pumps. The decibels are reduced by 10-15dB. There is no oil leakage problem. The workshop is very clean and easy to maintain.



Response

Faster response time, greater efficiency, and control range. Higher and wider, especially suitable for high-speed and large-volume extrusion blow molding machine.



Accuracy and repeatable positioning

Fully closed-loop control, high-precision encoder, controllable within 0.02mm, suitable for the production of high-precision products, high repeat positioning accuracy.
