| Plate Type: | Screen Printer |
|---|---|
| Automatic Grade: | Automatic |
| Usage: | Label Printer,Paper Printer,Tube Printer |
| Brand Name: | HYOO |
| Condition: | New |
| Plate Type: | HY-R120T |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 Year |
| Certification: | CE |
| Color & Page: | Multicolor |
| Model Number: | HY-R120T |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

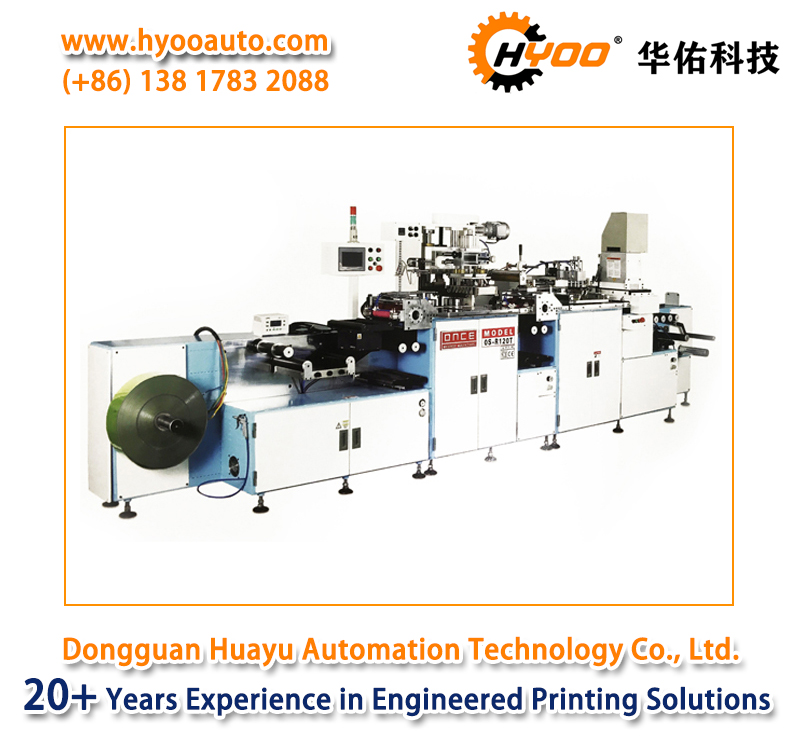

HY-R120T: Automatic Roll To Roll Screen Printing and Hot Stamping Machine
the HY-R120T is one color screen printing and one hot stamping automatic printing machine, specially designed for screen printing on roll to roll products, aluminum-plastic laminated tube sheet, flexible circuit board sheet, heat transfer film and kinds of coiled sheet products. the HY-R120T is flexible module unit available combines screen printing, hot stamping and offset printing according to print requirements.
the HY-R120T is one color screen printing and one hot stamping automatic printing machine, specially designed for screen printing on roll to roll products, aluminum-plastic laminated tube sheet, flexible circuit board sheet, heat transfer film and kinds of coiled sheet products. the HY-R120T is flexible module unit available combines screen printing, hot stamping and offset printing according to print requirements.
HY-R120T: Automatic 1 color screen printing and 1 hot stamping press.
HY-R320T: Automatic 2 color screen printing and 1 hot stamping press.
Designed for aluminum-plastic laminated tube sheet.
Servo positioning system, deviation control and tension control system
OMRON PLC controlled with touch screen
Automatic loading and unloading system.
up to 340*260mm print area.
Printing speeds up to 75 times/min.
the HY-R120T is one color screen printing and one hot stamping automatic printing machine, specially designed for screen printing on roll to roll products, aluminum-plastic laminated tube sheet, flexible circuit board sheet, heat transfer film and kinds of coiled sheet products. the HY-R120T is flexible module unit available combines screen printing, hot stamping and offset printing according to print requirements.
Main Specifications of Roll to Roll Automatic Screen and One Hot Stamping Printing Machine HY-R120T(1 Color), HY-R320T(2 Colors)
| Model NO.: | HY-R120T | HY-R320T |
| Print product size: | Width 280mm | Width 280mm |
| Max. Print area: | L340 x W260 mm | L340 x W260 mm |
| Max. Printing speed: | 60 pcs/min | 70 pcs/min |
| Drive: | Mechanical driven | Mechanical driven |
| Flame treating system: | 1 unit | 1 unit |
| Print head: | 3 units | 3 units |
| Stations: | 24 stations | 24 stations |
| UV system: | 3 units electronic UV system, 3KW per each | 3 units electronic UV system, 3KW per each |
| Deionizing device: | 1 unit | 1 unit |
| Motor: | ITALY SITI | ITALY SITI |
| Control system: | OMRON PLC & Touch Screen | OMRON PLC & Touch Screen |
| Pneumatic parts: | Japan SMC | Japan SMC |
| Electrical supply: | 380V/480V 3phase 50Hz/60Hz | 380V/480V 3phase 50Hz/60Hz |
| Air requirement: | 5-7bar | 5-7bar |
| Power consumption: | 11 KW | 33 KW |
| Machine dimension: | L5500 x W820 x H1600 mm | L8600 x W820 x H1600 mm |
| Weight: | 2800 KG | 4800 KG |
Notes: Specifications are subject to change without further notification, please contact with Huayu Automation before ordering.
