| Plate Type: | Screen Printer |
|---|---|
| Automatic Grade: | Automatic |
| Usage: | Cloths Printer,Label Printer,Paper Printer,Tube Printer |
| Brand Name: | HYOO |
| Condition: | New |
| Plate Type: | HY-S400T |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 Year |
| Certification: | CE |
| Color & Page: | Multicolor |
| Model Number: | HY-S400T |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

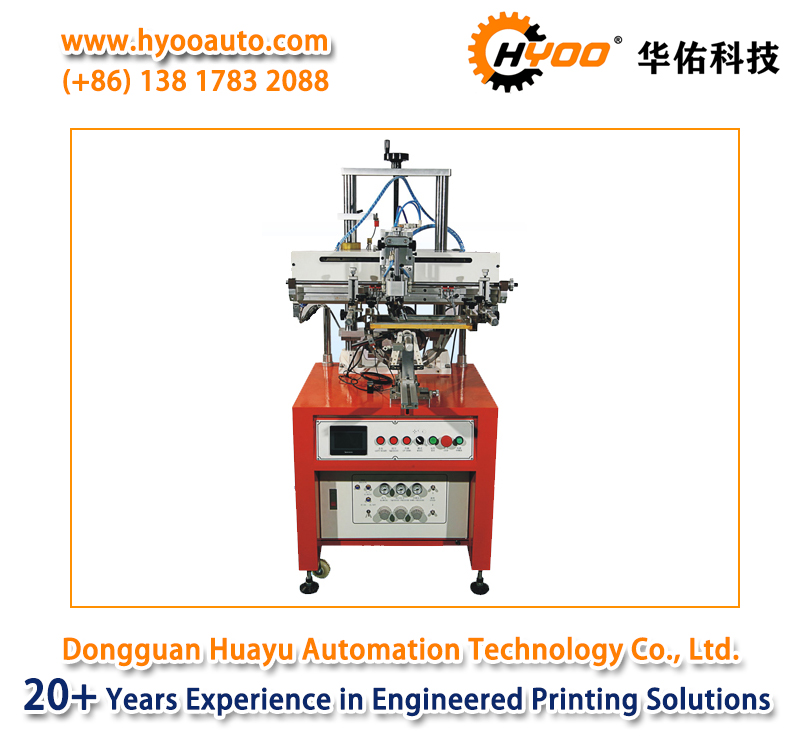

HY-S400T: Servo Registration Screen Printing Machine
the HY-S400T is specially designed for screen printing on round objects without fixed position, such as plastic bottle, glass container, cosmetic ontainer, oil filter or other round products.Cylinders used in printing stroke, head and lifting working platform are all imported, and the speed of each part can be adjusted separately.
the HY-S400T is specially designed for screen printing on round objects without fixed position, such as plastic bottle, glass container, cosmetic ontainer, oil filter or other round products.Cylinders used in printing stroke, head and lifting working platform are all imported, and the speed of each part can be adjusted separately.
Specially designed for screen printing on round objects without fixed position, such as plastic bottle, glass container, cosmetic ontainer, oil filter or other round products.
Cylinders used in printing stroke, head and lifting working platform are all imported, and the speed of each part can be adjusted separately.
Achieve multiple precise color registers on objects without fixed position through fiber positioning.
Driven by imported servo motor.
Equipped with world famous PLC controller and touch screen, so that the whole operation becomes easy and convenient.
with feature of screen frame goes up and down, in instead of worktable goes up and down, ensure registration accuracy and more convenient for operator.
Main Specifications of Servo Registration Screen Printing Machine HY-S400T:
| Model NO.: | HY-S400T |
| Shape of Tested Objects | Cylinder and Round |
| Max. Printing Area | 400L* 200W * Φ100 mm |
| Max. Running Speed | 40 Cycles/Min |
| Power Supply | AC220V 1Phase 50Hz |
| Air Pressure | 4-6 Bar |
| Dimension | 835L * 880W * 130H mm |
| Weight | 200Kg |
Notes: Specifications are subject to change without further notification, please contact with Huayu Automation before ordering.
