| Brand Name: | Nanjing Shiheng Electronic Technology Co., Ltd |
|---|---|
| MOV: | 0.003-0.085 |
| thermal fuse: | CU/CP |
| Model Number: | mf73 |
| Place of Origin: | China (Mainland) |
| Max Steady State Current(A): | 13-80 |
| Approx.Rof Max.Cur.: | 0.003-0.085 |
| Max surge capactiance current 240V/vc: | 3300-47000 |
| Diameter(mm): | 40,45,50 |
Quick Details
Specifications

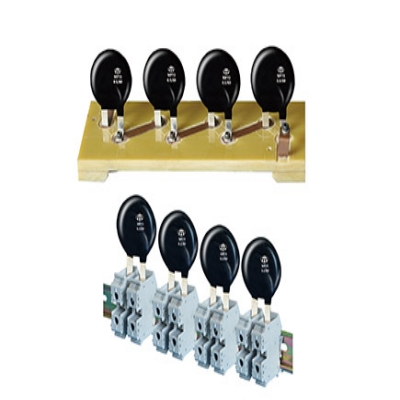

MF73 High-power NTC Thermistor series
Small size, high power, strong ability to suppress surge current
Material constant (B value) is large, the residual resistance is small, and its own power consumption is small
Large current, long life, high reliability
It is convenient for circuit board installation, complete series and Wide application range.
Small size, high power, strong ability to suppress surge current
Material constant (B value) is large, the residual resistance is small, and its own power consumption is small
Large current, long life, high reliability
It is convenient for circuit board installation, complete series and Wide application range.
Characteristics
Reliable Configuration and convenient installment
Have the strongest capabilily of surge curent protectiona and energy absoptionMaximum steady state operating current
Longerity of service,high reliability
Applications
All kinds of power supply,UPS power supply, Switching power supply
EV charger,charging pile
Motor driver,Superpower server motor driver,Logic controller
High power plasma electic welder,cutting machine, super power lighting lamp
Nuclear magnetic resonance equipment,super power audio power amplifier,high power circle transformer
the solar panel arrays wiht high capacity power inverter
the industrial robot drived by high voltage power supply,intelligent electric cabinet with low voltage
Dimensions(mm)
Curved
Body size |
Φ40 |
Φ45 |
Φ50 |
Diameter(Dmax) |
45 |
50 |
55 |
Thickness(Imax) |
18 |
18 |
18 |
Pitth(F±15) |
22.5 |
22.5 |
22.5 |
Lead length(L2) |
20 |
20 |
20 |
Lead width(W±02 |
8 |
8 |
8 |
Lead thickness(H±0.1) |
1.0 |
1.0 |
1.0 |
Straight
Body size |
Φ40 |
Φ45 |
Φ50 |
Diameter(Dmax) |
45 |
50 |
55 |
Thickness(TMax) |
18 |
18 |
18 |
Pitch(F±15) |
22.5 |
22.5 |
22.5 |
Lead length(L±2) |
30 |
30 |
30 |
Lead width(W±0.2) |
10 |
10 |
10 |
Lead thickness(H±0.1) |
1 |
1 |
1 |
WidTh of lowLead(W1±0.2) |
6 |
6 |
6 |
MAIN TECHNICAL PARAMETER
Part No MF 73
|
Max Steady State Current(A) |
Approx.R of Max.Cur.(Ω ) |
MaxSurgeCapactianceCurrent 240V/vc |
Operating Temp.(℃ ) |
Φ40 |
13~50 |
0.005~0.075 |
3300~8000 |
|
Φ45 |
16~65 |
0.004~0.070 |
47000~11500 |
|
Φ50 |
15~80 |
0.003~0.085 |
6800~15000 |
