| Type: | Other |
|---|---|
| Brand Name: | KOPY |
| Packaging Material: | Metal |
| Packaging Type: | PALLET |
| Application: | industry |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 4m x 8m x 1.5m |
| Weight: | 9 Mt |
| Model Number: | FQ-900S |
| Place of Origin: | China (Mainland) |
| Power: | 70kw |
| Voltage: | 380v/50Hz |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
Quick Details
Specifications

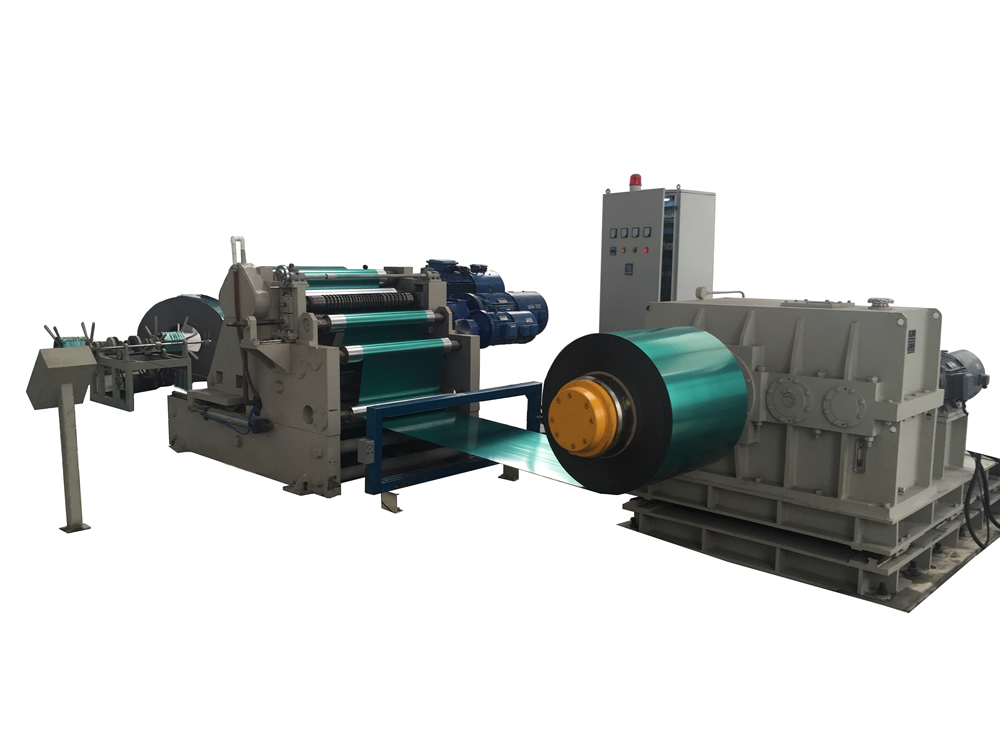

Features:
AC motor driving unwinding, AC motor for secondary brake, generating power for slitting use.
Unwinding shaft is changable chucks, rewinding shaft is expansioning shaft.
PLC control, HMI screen operating
Web aligning device is available.
Incremental tracking rollers to eliminate cut edge curves and overlaps in rewound coils.
Specification:
| Workable material thickness (mm) | 0.15 - 0.3 |
| Unwind width (mm) | 900 Max. |
| Unwind roll diameter (mm) | 1300 Max. |
| Unwind shaft diameter (mm) | 150, 406 optional |
| Speed (m/minute) | 0 - 150 |
| Slitting width (mm) | 12 Min. |
| Slitting accuracy (mm) | 0.5 |
| Rewinding roll diameter (mm) | 1300 Max. |
| Rewinding shaft diameter (mm) | 150 or 406 optional |
| Power (v, kw) | 380, 100 |
| Machine dimension (mm) | 4980 x 2500 x 1400 |
| Machine weight (kg) | 9000 |
