Slickline Pressure Control Equipment (Slickline PCE)

Slickline Pressure Control Equipment ( abbr. Slickline PCE or SPCE ) is used to provide safe and reliable wellhead control system for oilfield Well Logging, Peparaffin Removal, Accident Handling, etc. Operation. Regardless of wire in static state or dynamic state, Slickline PCE could seal well during the operation. Or it could close the wellhead when the wellhead overflow is out of control or any other accident occurs during operation. The whole set equipment is skided design, which is convenient for the whole hoisting, transportation, storage and operation.



Feature

1) the design and manufacturing of Slickline PCE comply with API Spec-16A, API Spec-6A, NACE MR 0175 and other relevant standards.
2) Expertly engineered and rigorously tested.
3) Safety, Reliability and Good Service.
4) High Cost-effective.
5) Third Party Inspection allowed.

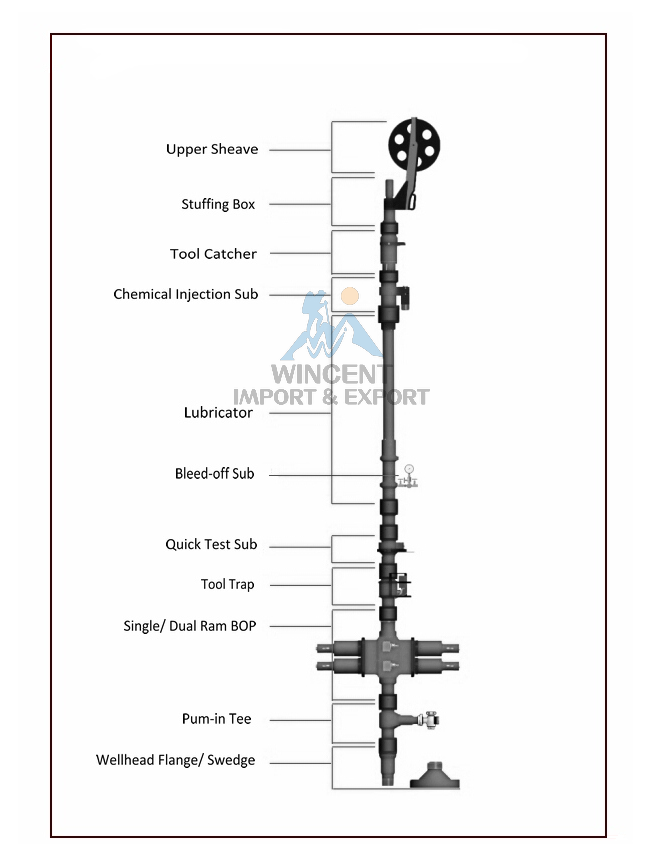

Slickline PCE String mainly be consist of

1) Stuffing Box
2) Tool Catcher
3) Lightweight Lubricator
4) Bleed-off Sub
5) Quick Test Sub ( QTS )
6) Tool Trap
7) Single RAM BOP or Dual RAM BOP
8) Pump-in Tee
9) Wellhead Flange
10) Hay Pully
11) Hydraulic Control Unit
12) Hoses and Other Parts

Note

1) There are Bowen (Type B), Otis (Type O) and our own Quick Union (Type W) for threaded selective.
2) Additional size available on request.
