Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 months
Brand Name: VANGUARD
Motor Type: AC Motor
Condition: New
Certification: ISO9001-2008 international quality management system certification and
Model Number: 5X Sand Maker
Place of Origin: China (Mainland)
Capacity(t/h): 55-300T/H
Application: stone,ore,coal,sand
Type: Impact Crusher
Product name: 5X Sand Maker Sand Production Equipment
Keyword:: Mining Machinery sand making machine
Price:: Competetive (can Discuss
Test&Installation:: Pofessional Engineer Assigned
Color:: Customizable
Function:: crush pebble, river stone, limestone, quartz
Output size:: <5mm
After sale Service:: 7*24hours
Spare parts supply:: Anytime
Factory visit:: Weclcomed Warmly

Specifications

Product Description

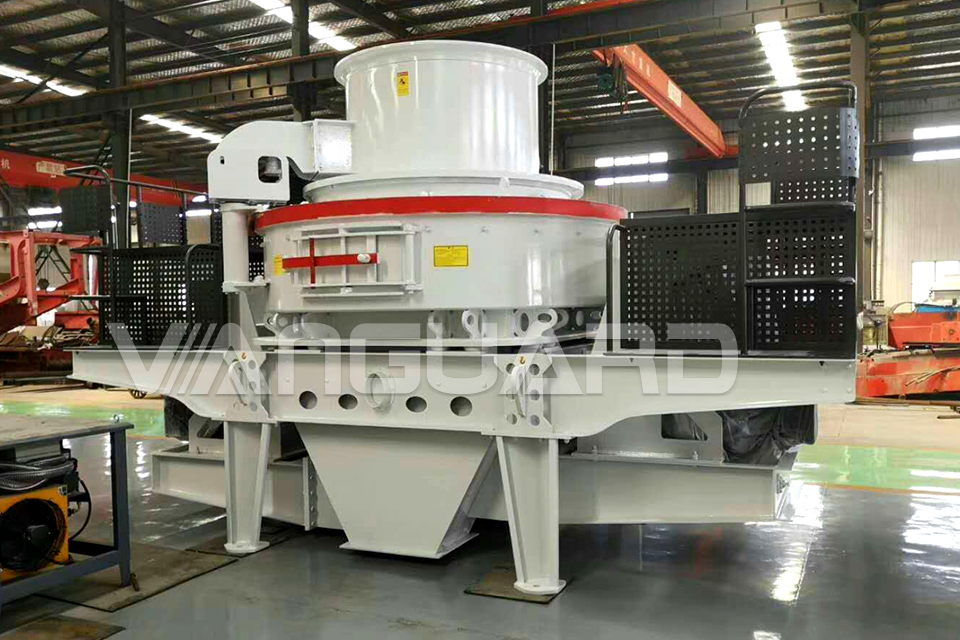

High Efficiency Vertical Fine Crusher Sand Maker Sand Making Machine
High Efficiency Vertical Fine Crusher Sand Maker Sand Making Machine
5X series new sand making machine (centrifugal impact crusher) is widely used in various kinds of metal and non-metallic ores, cement, refractory abrasives, glass raw materials, constructionaggregate machine made sand, metallurgy and other industries. It is suitable formedium and finely crushing all kinds of ores and rocks with different hardnesssuch as iron ore, non ferrous metal orecorundum, bauxite, quartz sand, browncorundum, perlite, basalt and otherhigh hardness materials.
PRODUCT ADVANTAGES
Performance improvement of key parts
in order to ensure the overall performance of the sand making machine, key parts on it is optimized on their structures, such as the impeller, the bearing cylinder and the main body.
Quick change of crushing mode
with optimized stucture of crushing cavity, it can realize the rapaid conversion of two crushing modes which are crushing between stones and crushing between stone and impact plate.
Intelligently controlled diluted oil lubrication
It adopts diluted oil lubrication and is equipped with air-cooled system which is controlled by PLC and intelligent insturments, so the lubrication temperature can be adjusted to provide ideal working condition for the bearing.
Processed Materials:
Limestone, Granite, Basalt, River Stones, Quartz, Copper Ore, Iron Ore, Marble, etc.
PRODUCT PARAMETERS
Model
5X7615
5X8522
5X9532
5X1145
Capacity (t/h)
Cascade and Central Feeding
150~280
240380
350280
250360
Fully Central Feeding
70~140
120~200
180~280
250~360
Max. Feeding Size(mm)
Soft Material
35
40
45
50
Hard Material
30
35
40
45
Rotation Speed(r/min)
1700~1900
1500~1700
1300~1510
1100~1310
Double Motor Power(kw)
150
220
320
440
Overall Dimension LxWxH(m)
4.12.32.3
4.142.52.7
4.562.62.9
5.12.793.32
Power Supply
380V, 50Hz


Thin Oil Lubrication Station
Double oil Pumps Motor's Power(kw)
20.31


Safty Assurance
Dual oil pump system stabilize oil supply; switch-off automatically without oil flow or oil pressure; air coolingsystem /water
Cooling system available; preheating-start engine adopted.
Power of Oil Tank Heater (KW)
2
about VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. Is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises.Our factory covers110000 square metersand our products are sold toMore than 100 countries, being the popular equipment in global crushing industry.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds

FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A:the Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. and we will supply the spare parts with high quality for you at lowest cost.

Q2: how long is your delivery time?
A:the lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3:If I need the complete crushing plant can you help us to build it?
A:Yes, we can help you set up a complete production line and give you related professional advice. We had already build many
Mining projects in China & Overseas.

Q4: how about the quality of your equipment?
A:Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
