| Material: | Polyester / Acrylic |
|---|---|
| Model Number: | HT-7 |
| Brand Name: | HUATAO |
| Place of Origin: | China (Mainland) |
| Yarn Count: | / |
| Supply Type: | Make-to-Order |
Quick Details
Specifications
Specification
Material of Polyester Spiral Mesh Belt,100% polyester
Small loop,Middle loop,Big loop,etc
Mainly used in paper making,rubber thread production, printing and dyeing, food, pharmaceutical,
Ceramics and sold & liquid separation industry, mine, metallurgy and other fields.

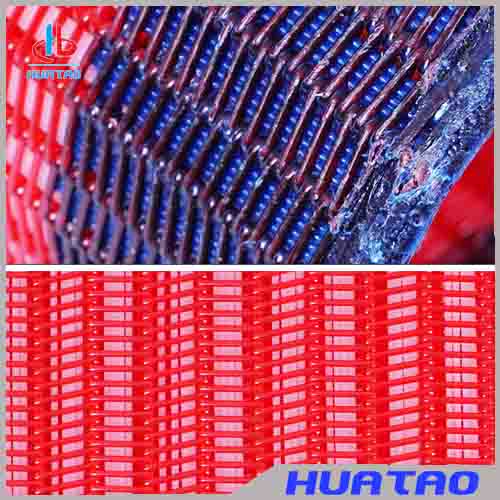

Polyester Spiral Mesh Belt,also named Polyester Spiral Belt,Spiral Link Dryer Screen spiral synthetic fabrics,polyester spiral link dryer fabric(SLDF),polyester spiral dryer screen.
It can be devided into small loop,medium loop,large loop,etc
Features
Large air permeability with long life time. Flat surface and Good Strength.
High temperature resistance,abrasion resistance and aging resistance.
Applications
Polyester Spiral Mesh Belt are mainly used in paper making,rubber thread production, printing and dyeing, food, pharmaceutical,
Ceramics and sold & liquid separation industry, mine, metallurgy and other fields.
Technical Parameters
Model |
Warp thread diameter |
Weft thread diameter |
the specification of single loop |
Weight kg/m2 |
Thickness mm |
Air permeability CFM/127 PA |
Large loop |
0.9 |
1.1 |
LW 4.0 X8.0mm |
1.7 |
3 |
900cfm-1250cfm |
Medium loop |
0.7 |
0.9 |
LW 3.8X6.8mm |
1.4 |
2.5 |
900cfm-1250cfm |
Small loop |
0.5 |
0.7 |
LW 3.2X5.2mm |
1.1 |
1.9 |
900cfm-1250cfm |
