| Moving Type: | Crawler Loader |
|---|---|
| Type: | Skid Steer Loader |
| Brand Name: | Jiasi |
| Condition: | New |
| Year: | 2022 |
| Make: | diesel |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year |
| Certification: | FDA CE ISO |
| Place of Origin: | China (Mainland) |
| Model Number: | 525 |
Quick Details
Specifications
Product Description

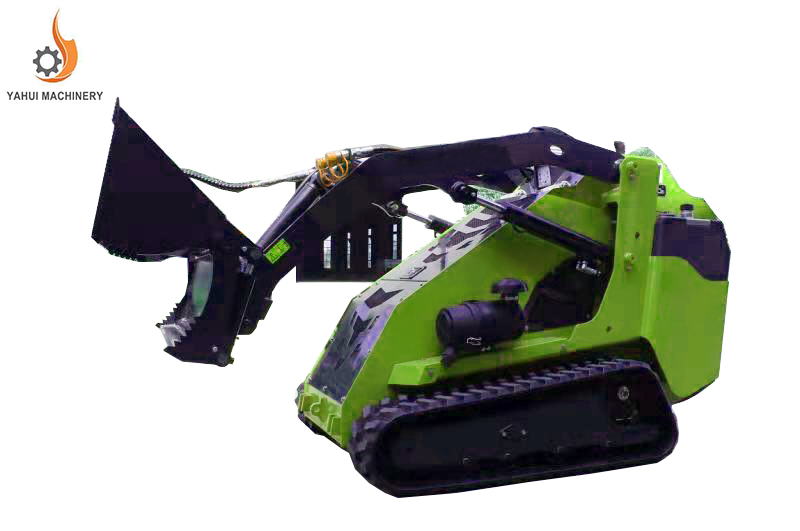

Mini loader. Compact structure, simple and flexible operation, standing operation, wide vision! Small turning radius, can operate freely in narrow space. Especially suitable for port cleaning cabin, landscaping, urban indoor demolition of construction waste transfer save trouble and effort. Products can be customized for customers, and a wireless remote control slip loader, can achieve remote control. Multi-function slippage loader! Optional installation of a variety of auxiliary tools: such as rotary tiller, ditching machine, snow shovel, excavator, auger and other multi-purpose machine, Japan's original imported Kubota engine, Japan's original imported Yanm
A engine, and Italy's imported hydraulic system to achieve the best match!
Our Advantage:
**Japan imported original kubota engine 25 HP (EpA), Italy imported hydraulic system
* Word first-class quality power system.
*Original imported hydraulic system
*Direct driving from engine to pump.
ML525 skid steer loader is developed with world latest design standard. It is a new kind of product characterized by high efficiency, safety,convenience and beauty.
It is rubber crawler track skid steer loader type, two crawler driving and 360 degree skid-steering, with quick coupling to attach various attachments at job site easily. It can work in different working environments. 1000kgs loading capacity, rough terrain road working condition the heavy machine you have. Mini compact track crawler loader for sale.Compact skid steer
Detailed Photos
Related product:
Product Parameters
PERFORMANCE
SAE Rated operating capacity 735 lb (333 kg)
Ground Pressure 3.79 pis (0.261 bar)
Tipping Capacity 2100 lb (953 kg)
Weight (no attachment) 2356 lb (1069 kg)
Travel Speed 3.5 mph (5.6 km/h) DIMENSIONS Length (without bucket) 77 in (1959 mm)
Width (with bucket) 49 in (1250 mm)
Height 53 in (1338 mm)
Height to bucket pin 74 in (1869 mm) ENGINE Emission Regulation Tier 3/Stage III A
Make/Model Kubota // D1105-E4B-CSR-1
Fuel/Cooling Diesel/Liquid
Cylinders 3
Horsepower (SAE Gross) 25.2 HP (18.5 kw)
HP/Displacement 68.5 in3 (1.123L)
Fuel Tank Capacity 9.2 gal (35 L)
Air Cleaner Heavy-duty dual element OPERATION Steering and Drive Direction and speed controlled by one multi-function handle.
Lift and Tilt Raise/lower and dump/rollback controlled by one lever.
Transmission Hydrostatic track drive system.
Attachment Single lever with dual direction detent. ELECTRICAL SYSTEM System Val tage 12V 45Ah
AlC tern at or Output 55amp
