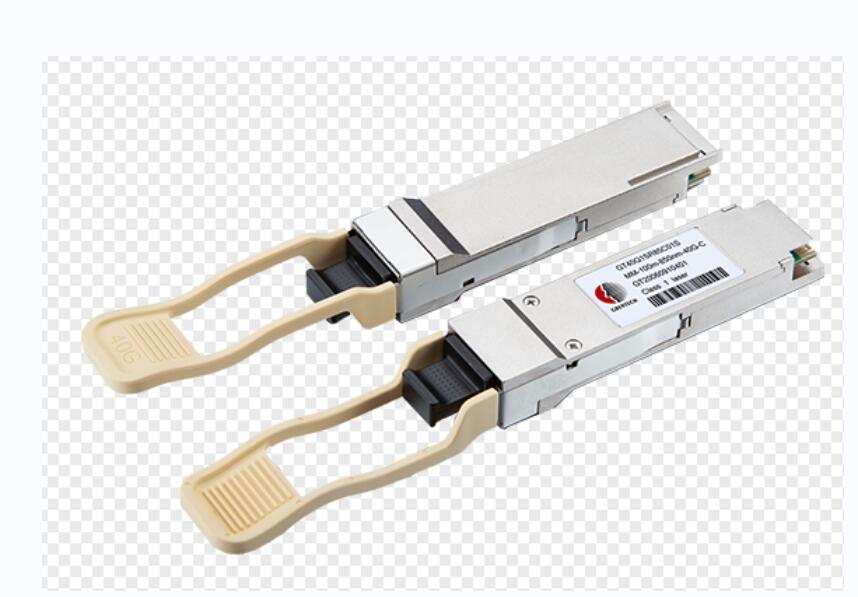

GrenTech  compliant with SFF-8436 and IEEE 802.3ba with a 4 channel VCSEL array and a 4 PIN array, the rate of a single channel is 10Gbps. It is an MPO connector and it can transmit up to 400m over OM3 cable. this module has the characteristics of low power consumption and stable performance, widely uses in 40G Ethernet, data centers and fiber channels etc.



40G QSFP SR4 Specification

Product Name	40G SR4	Vendor Name	GrenTech
Form Factor	QSFP+	Wavelength	850nm
Max Data Rate	4X10Gbps	Transmitter Distance	300m
Cable Type	MM	Connector	MPO
Transmitter	VCSEL	Receiver	PIN
DDM	Supported	Temperature Range	0-70℃
Modulation Format	NRZ	FEC	NO
Power Consumption	≤1.5W	EMC	Supported



as one of the most professional, we provide communication equipment, and etc. for more SFP information, please feel free to contact us!
