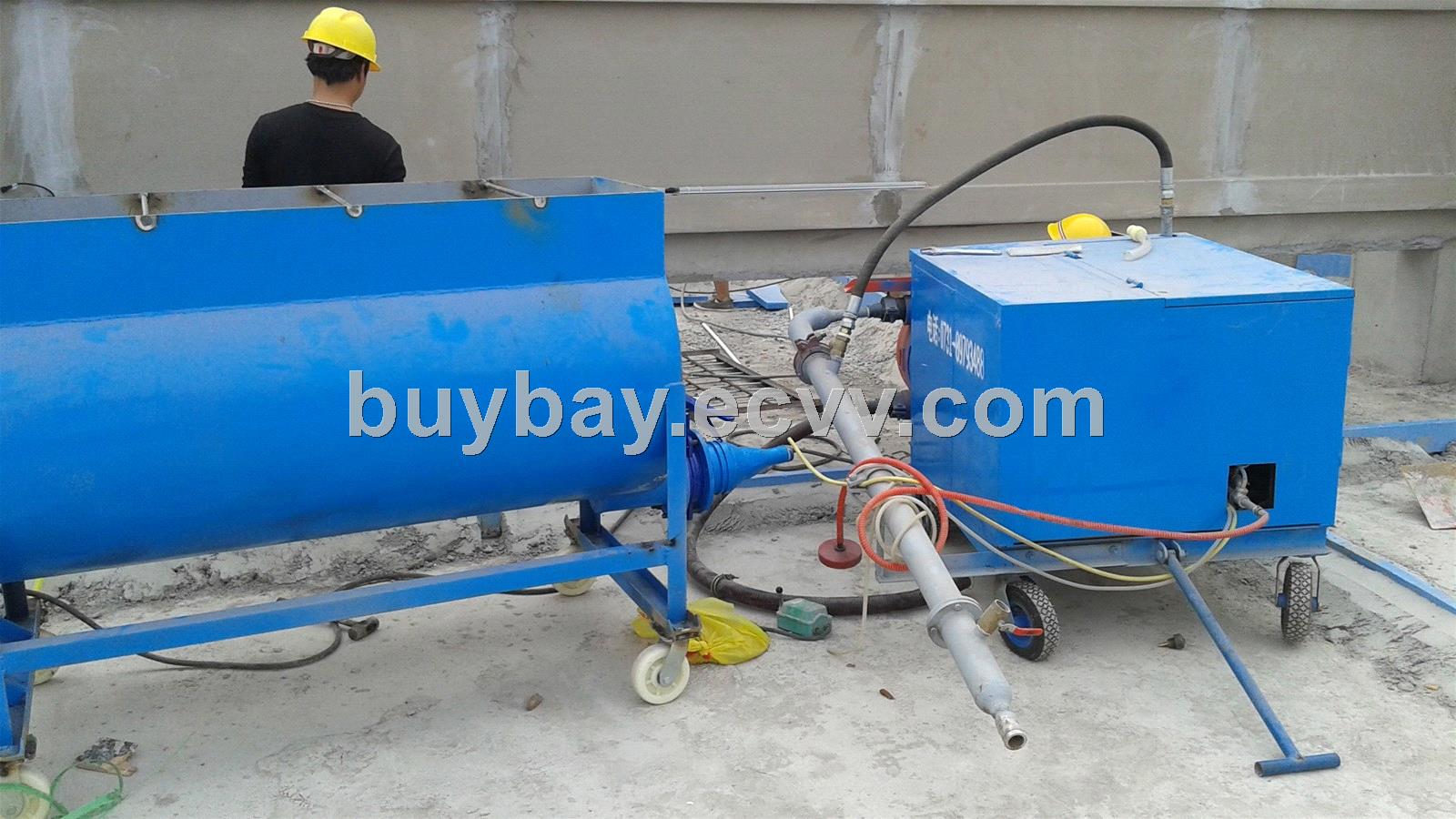

FM-5 Foam Concrete Machine FM - 5 foam concrete machine is a special designed and developed foam concrete machine for small size construction project by our company base on the market demands.

1, Feature: 1) Includes 2 parts, a mixer and a main part(a pump with a built-in foam generator inside the Pump), 2 parts respectively independent convenient mobile;
2) with the hose pump head, which can be cleaned without remove the pump head 3) control by panel, simple and convenient operation;
4) the Main part with good foaming effect; the bubble size, bubble moisture content is low, Reduce the dosage of bubble, save the cost;
5) foaming agent have a good adaptability to viscosity
6) with a high quality motor, quality stably.

2, Technical parameters:
Product FM-5 the theory of the max production capacity (m3 /h) 5
Outlet pressure (Mpa) 0.8
Theory of vertical conveying distance (m) 20
the theoretical level transport distance (m) 50
Total power (kw) 10
Mixer dimension(L x W x H) (mm) 1800*900*500
Pump dimension(L x W x H) (mm) 960850755
Weight (kg) 500

4, Application
1) the roof insulation, floor casting, cushion layer in the room
2)Block/wall of fire prevention
3)Residential and industrial zone under the basis of underground isolation
4)Filling holes, Bridges, dock, pier, attic and beam
5) Antifreeze function for streets and roads, to protect the underground pipeline and Heating syste
