| After-sales Service Provided: | No overseas service provided |
|---|---|
| Certification: | CCC,CSA |
| Structure: | Plate Heat Exchanger |
| Brand Name: | LASWIM |
| Condition: | New |
| Dimension(L*W*H): | 750*750*1050 |
| Weight: | 110kg |
| Voltage: | 380V/3N/50Hz |
| Maximum Working Pressure: | 40 |
| Liquid Flow Rate: | 4.3 |
| Model Number: | LAS-KP |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Basic Info.
Model NO.
LAS18-KP/LAS21-KP
Housing Material
High-Quality Galvanized Sheet
Power Supply
380V/3n/50Hz
Working Air Temperature Range
-5~45 Degrees Celsius
Maximum Outlet Water Temperature
40 Degrees Celsius
Maximum Pressure(MPa)
2.8/4.2
Transport Package
Carton
Specification
750*750*1050(mm)
Trademark
Laswim
Origin
China
Production Capacity
50, 000 PCS/Year
Product Description
Product Description

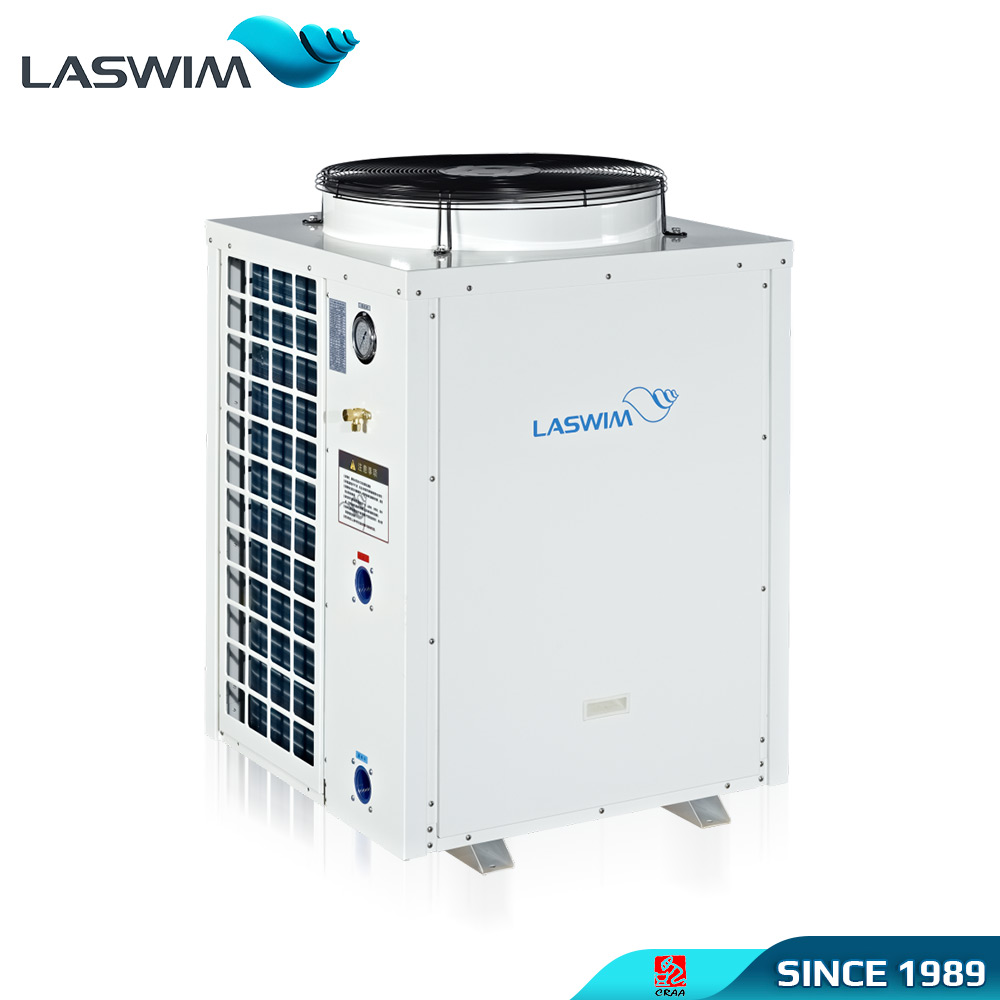

NORMAL TEMPERATURE SWIMMING POOL HEAT PUMP
LASWIM normal temperature commercial swimming pool heat pump is designed with titanium heat exchanger, can effectively resist the corrosion of chloride ion in pool water, this series heat pump is a reliable and energy-saving solution for pool in hotels, SPA, water parks, gyms, competition pool, etc.
Features:
1.Intelligent control for constant pool water temperature (max 40C)
2.Wide working air temperature range: -5C to 45C
3.Anti-corrosion titanium in PVC heat exchanger for durable use
4.Multiple protections for safe operation and long service life.
5.the housing adopts high-quality galvanized sheet, with strong corrosion resistance.
6.Powerful centralized control and remote control is available for convenient operation and maintenance.
7.Automatic and forced defrosting function.
Detailed Photos
Product Parameters
| Model | LAS18-KP | LAS21-KP | LAS35-KP | LAS42-KP | LAS52-KP | LAS70-KP | LAS85-KP | LAS105-KP | ||
| Standard heating | Heating capacity | kW | 20.1 | 24.1 | 40.2 | 48.2 | 56.3 | 80.46 | 96.4 | 112.6 |
| Condition | COP | 5.58 | 5.58 | 5.58 | 5.58 | 5.58 | 5.58 | 5.58 | 5.58 | |
| Low temperature heating condition | Heating | kW | 15.3 | 18.4 | 30.6 | 36.8 | 42.8 | 61.2 | 73.6 | 42.8 |
| Capacity | ||||||||||
| COP | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | ||
| Cooling condition | Coolin | kW | 13.4 | 16.1 | 26.8 | 32.2 | 37.5 | 53.6 | 64.4 | 37.5 |
| capacity | ||||||||||
| EER | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | ||
| Advised pool volume | m3 | 20-60 | 30-80 | 60-120 | 70-160 | 80-180 | 140-280 | 170-350 | 200-420 | |
| Power supply | ... | 380V/3N/50Hz | ||||||||
| Rated input power | kW | 3.6 | 4.3 | 7.2 | 8.6 | 10.1 | 14.4 | 17.2 | 20.2 | |
| Rated input current | A | 6.1 | 7.3 | 12.2 | 14.6 | 17.1 | 24.4 | 29.2 | 34.2 | |
| Max. Input power | kW | 5.9 | 7.1 | 11.8 | 14.2 | 16.5 | 23.6 | 28.4 | 33 | |
| Max. Input current | A | 9.9 | 11.9 | 19.8 | 23.8 | 27.7 | 39.6 | 47.6 | 55.4 | |
| Max. Water temperature | C | 40 | ||||||||
| Operating Air temperature | C | -5~45 | ||||||||
| Heat exhanger | Titanium in PVC (the material in contact with water is titaium) | |||||||||
| Max. Pressure (Refrigerant side) | MPa | 2.8/4.2 | ||||||||
| Refrigerant | R22/R410A | |||||||||
| Noise level | dB(A) | ≤63 | ≤63 | ≤64 | ≤64 | ≤65 | ≤66 | ≤67 | ≤68 | |
| Water inlet/outlet size | mm | 40 | 40 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Circulating Water flow rate | m3/h | 4.3 | 5.2 | 8.6 | 10.4 | 12.1 | 17.3 | 20.7 | 24.2 | |
| Water pressure drop | kPa | 40 | 47 | 48 | 50 | 50 | 51 | 53 | 50 | |
| Net weight | Kg | 110 | 165 | 280 | 320 | 420 | 560 | 650 | 760 | |
| Net dimension | mm | 750/750/1050 | 750/750/1050 | 1450/725/1050 | 1450/705/1350 |
1450/705/1350 | 2250/1035/1200 | |||
