| Application: | Laser Cutting |
|---|---|
| Certification: | CE,GS,ISO,SGS |
| Brand Name: | EETO Laser |
| Graphic Format Supported: | jpg |
| Applicable Material: | Carbon Steel, Stainless Steel, Aluminum, Brass, Red Copper |
| Laser Type: | Fiber Laser |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | FLXP series |
| Place of Origin: | Other Country |
| Control Software: | Cypcut |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 40-45m/Min |
| Cutting Area: | 3000mm*1500mm |
| Cutting Thickness: | 1-24mm |
| Condition: | New |
| Laser Power: | 1500-6000W |
| Cutting Thickness: | 1-24mm |
| Tube Processing: | Φ=20-200mm, L=3m, 6m (See Attachment 07 Page) |
| Tube Category: | Round, Square, Rectangular, Oval, Waist Round |
| Position Accuracy: | ±0.03mm/M |
| Repeatability Accuracy: | ±0.05mm |
| Packing and delivery: | Standard Packing |
| Power supply: | 4000W |
Quick Details
Specifications

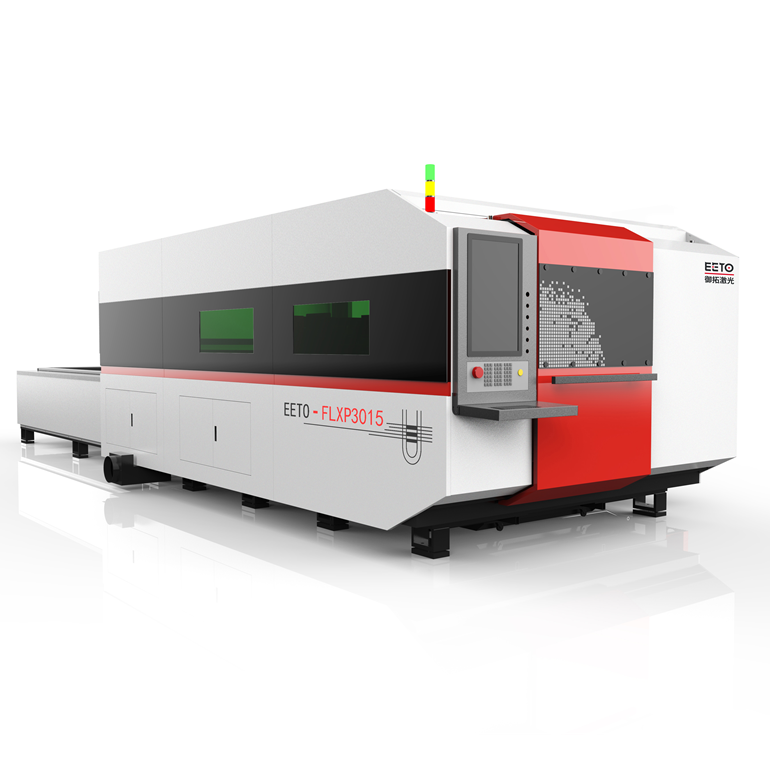

CNC Automatic Metal Plate Fiber Laser Cutting machine for Metal Steel, Mild, Carbon, Ss, CS, Steel Sheet
Features:

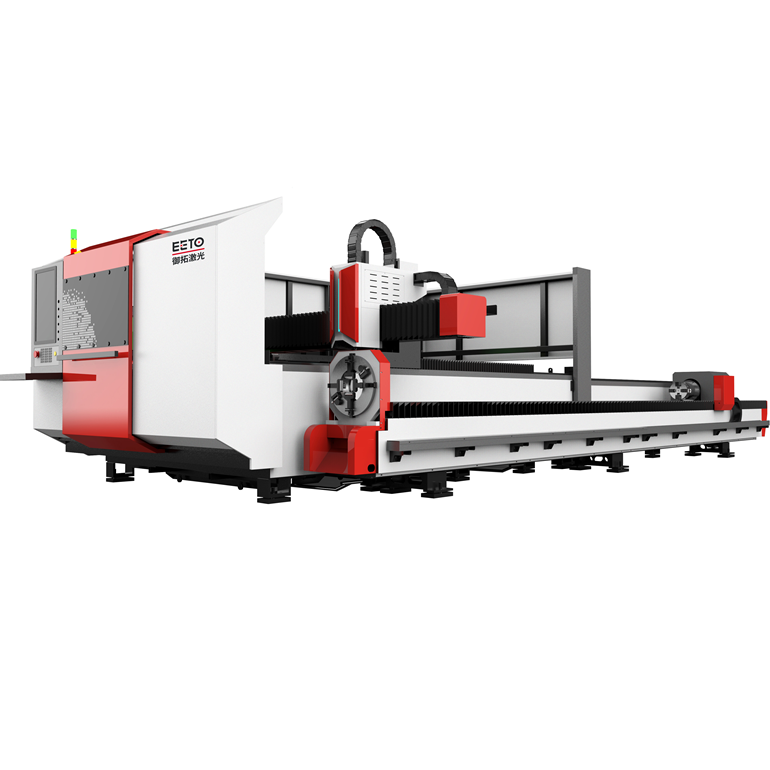

- Dual-use Fiber metal laser cutting machine for plates and tubes adopts most sophisticated fiber laser, combining self-design chuck, CNC software can realize the processing of plates and tubes at the same time.
- Front chuck with two long stroke axes linkage and non-directional adjustment.
- Rear chuck is automatic adjustment for 20~180mm tube.
- with imported high precision, fast speed linear guide drive.
- after high temperature annealing and precision machining by large CNC milling machine, machine has good rigidity and stability.
- It is mainly for cutting Metal plates from 1mm-25mm and tubes in high speed and high precision. Effective Cutting length 6m, suitable for round pipe, square tube, Rectangular tube, oval tube and other special-shaped pipe cutting.
- Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.
- Rapid exchanging between two platforms greatly improve work efficiency. Rack and pinion transmission system has higher accuracy, saving feeding time, making operation more efficient.
- All-cover exchange platform laser cutting machine
Optional power: 1500W 2000W 3000W 4000W 6000W 8000W
Cutting thickness: 0~25mm
Pipe diameter: 20~200mm
Cutting speed: 0~50m/min
What is fiber laser cutting machine Application?
Industry Application:Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing, kitchen processing and other manufacturing and processing industries.
Material Application:Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet and pipe cutting.
Standard Configurations:Major Configurations |
Content |
Brand |
Laser Generator |
4000W |
IPG/Raycus/JPT(Optional) |
Laser Cutting Head |
Pro-cutter |
Raytools, Switherland |
Height Controller |
BCS100 |
Bochu, China |
CNC Cutting Software |
Fscut 3000 |
Bochu, China |
Motor and Driver |
AC Servo Motor X Axis 1.8KW Y Axis 4.4KW*2 Z Axis 0.4KW W1 Axis 1.3KW W2 Axis 1.3KW P Axis 1.8KW |
YASKAWA, Japan |
Speed Reducer |
Standard |
Shimpo, Japan / MOTOREDUCER, France |
Rack and Pinion |
Standard |
YYC, Taiwan |
Linear Guide |
Standard |
TBI, Taiwan |
Power Supply |
Standard |
Mean well, Taiwan |
Cooling System |
Dual Temperature Industrial Chiller |
TongFei, China |
Industrial Air Conditioner | ||
Lubrication System |
HTSO2(Automatic) |
EETO, China |
Close-Loop Gas System |
Standard |
EETO, China |
Voltage Stabilizer |
to Match Local Power |
FATO/XiShun, China |
Industrial PC |
WIN7/32Bit 4GB RAM High Speed 3.0 USB Interface |
Friendness, China |
