Features:

• Internally frequency-compensated

• Large DC voltage gain: 100 dB

• Wide bandwidth (unity gain): 1.1 MHz (temperature compensated)

• Very low supply current per operator essentially independent of supply voltage

• Low input bias current: 20 nA (temperature compensated)

• Low input offset voltage: 2 mV

• Low input offset current: 2 nA

• Input common-mode voltage range includes negative rails

• Differential input voltage range equal to the power supply voltage

• Large output voltage swing 0 V to (VCC+ -1.5 V)



Applications:

• Integrator, Differentiator, Summer, adder, Voltage follower, etc.,

• Digital multimeters, Oscilloscopes

• Comparators (Loop control & regulation)

• Transducer Amplifiers

• DC gain blocks

• Conventional op-amp circuits

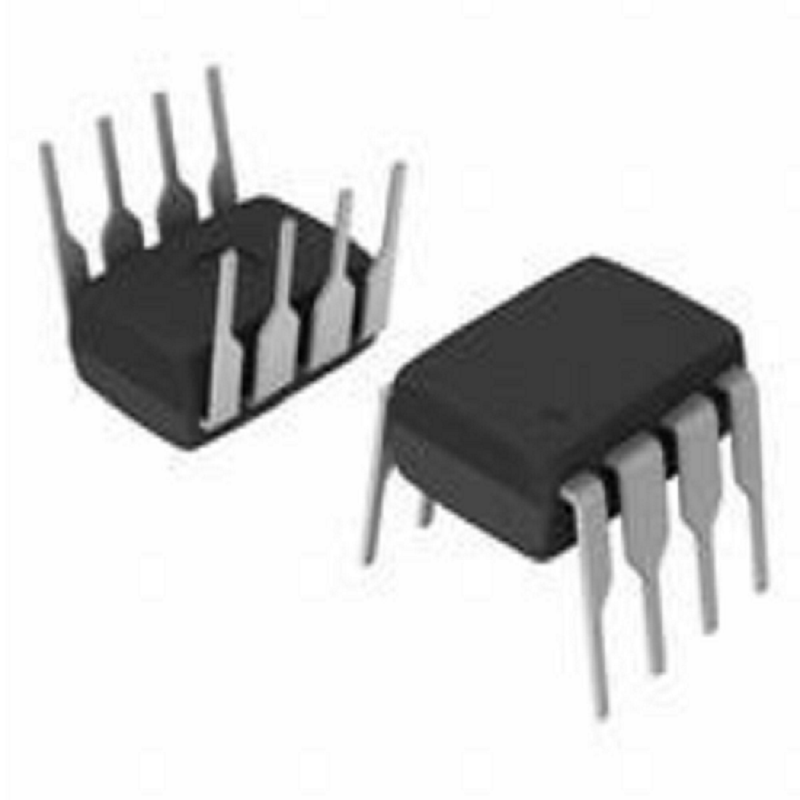

Package:
8-DIP(0.300,7.62mm)
