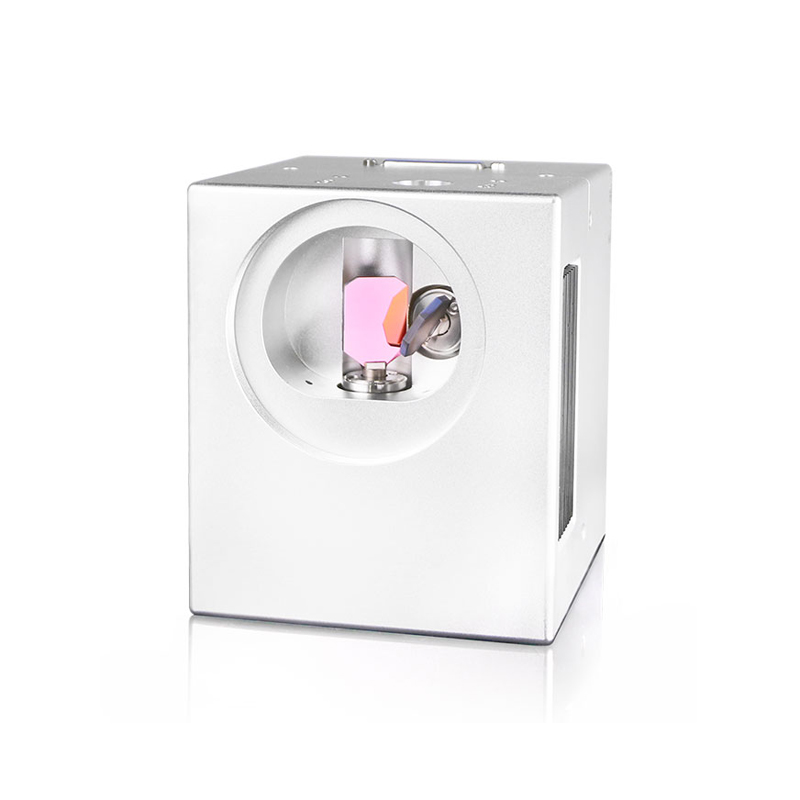

UltraScan10

Precision marking

Marking-on-the-fly

FPC and SLA applications

Input Beam Aperture (mm)

10

10

10

Beam Displacement (mm)

12.54

12.54

12.54

Tracking Error (ms)

0.18

0.14

0.16

Repeatability (rad)

2

2

3

Offset Drift (rad/K)

15

15

15

Gain Drift (ppm/K)

80

80

80

Long-term drift over 8 hours (mrad)

0.3

0.4

0.15

1% of full scale (ms)

0.40

0.30

0.35

10% of full scale (ms)

1.20

1.00

1.10

Positioning Speed (m/s)

10.0

20.0

15.0

Typical Scan Angle (°)

±12.5

±12.5

±12.5

Gain Error (mrad)

<5

<5

<5

Zero Offset (mrad)

<5

<5

<5

Nonlinearity (%)

<0.4

<0.4

<0.4

Power Requirements

±15VDC, ≥3A

±15VDC, ≥3A

±15VDC, ≥3A

Digital Interface

XY2-100

XY2-100

XY2-100

Operation Temperature (℃)

25±10

25±10

25±10

Weight (kg)

1.9

1.9

1.9
