Application:

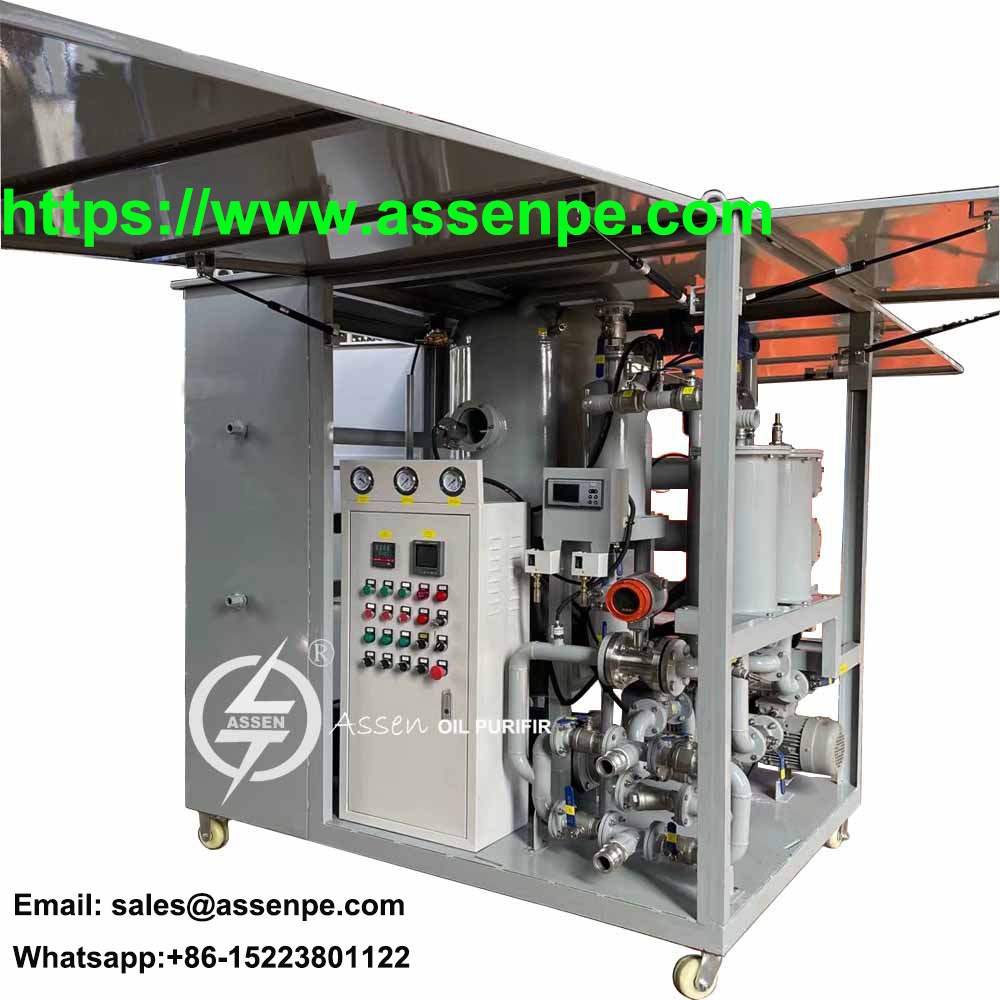

Transformer oil tends to deteriorate with time and gradually Begins to decaying, In addition to these reasons, the presence of high Temperatures, oxygen and water, the catalysis of the materials present in the Transformer; all combined to cause deterioration of the oil condition. Such processes also tend to release certain by products that are Highly acidic-finally resulting in high deterioration of the oils; and Ultimately the transformers. ZYD Transformer Oil Dehydrtaion Process unit is required to Improve the performance of the insulating oil. It can effectively remove Acidity, moisture, traces of water, dissolved gases and particulate matter in Insulating oils, which ultimately improves the performance levels of Transformers, circuit breakers, transformers, cables and capacitors. All of these devices and machines have an insulation system.

Thousands of oil filled transformers that contain huge quantities of insulating oils inside them are in service Today. Transformer Oil Treatment machine at regular intervals ensures;

1.     Provide efficient cooling system.

2.     Protect the transformer core and coil assembly from chemical attacks.

3.     Provide dielectric strength of the transformer insulation system

4.     Prevent formation and stagnation of sludge in the transformer

Features:

Expectations on an effective oil plant for treatment of Insulating oil.

Suitable for oil treatment, vacuum oil injection and Cyclic hot oil drying in the installation and maintenance of large capacity Transformers.

Easy and failsafe operation.

on-line measuring and recording of process parameters.

Used in the electric power system (110kV~500KV).

Features include low noise, High-strength working vacuum, and high efficiency filtering process

Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤5Pa

the unit can be used for the Transformer vacuum oiling and for various wet electrical equipment vacuum Drying.

Flexibility in application(flow Frequency conversion, suitable for transformers of different sizes)

It is humanization design with low Noise, deep purification and long time free maintenance to save cost from the Running process.
