| Brand Name: | HCYL |
|---|---|
| Certification: | CCC, FCC, ROHS,CE |
| Function: | Firewall,QoS,VPN |
| Application: | Enterprise |
| Type: | Wireless |
| Place of Origin: | China (Mainland) |
| Model Number: | HC-Z2101 |
| Products Status: | Stock |
| Chipset: | MTK7621 |
| Flash/RAM: | 16MB/256MB(Max.32MB/256MB) |
| WAN: | 1*10/100/1000Mbps WAN port |
| LAN: | 3*10/100/1000Mbps LAN ports |
| SIM Card Slot: | 1*Standard SIM Card slot |
| Wifi: | 2.4G+5.8G/Dual Band Wifi6/1800Mbps |
| Antennas: | 8 External Antennas(5G Antennas are removable) |
| System: | openWRT |
| OEM Services: | Acceptable |
| Product Name: | 5G Wifi6 Router |
Quick Details
Specifications

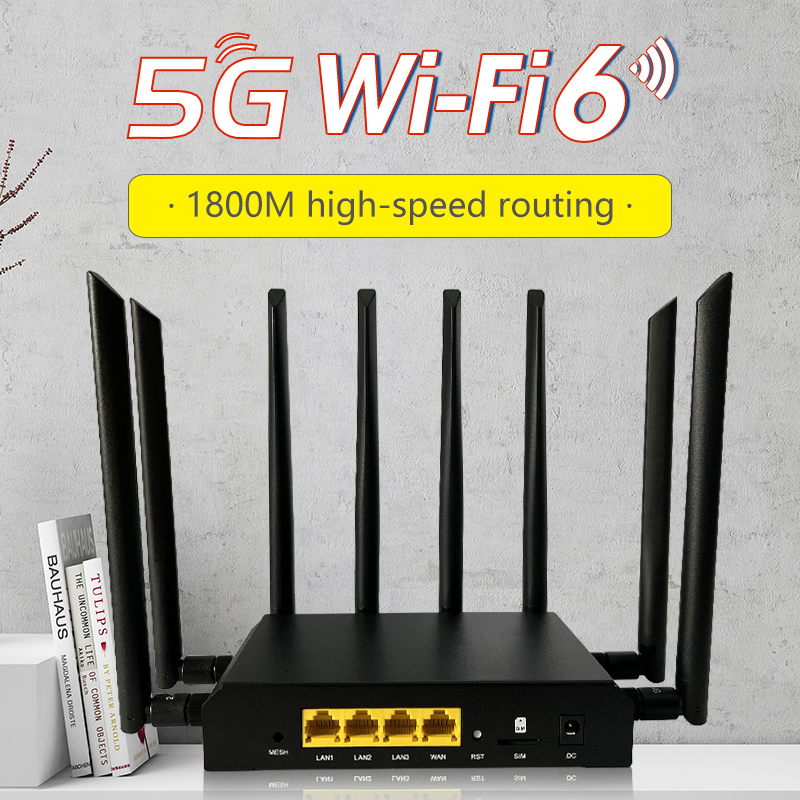

OEM Industrial 4G 5G Router Wifi6 1800Mbps 11AX Wifi 5G Router with SIM Card Slot
Simple Introduction
Z2101AX is a 5G/4G+WIFI6 CPE router. It accesses the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then shares the Internet network through wireless WiFi 6 and 1000Mbps wired LAN.
Product Feature
- Using MT7621A scheme, MIPS dual-core CPU, the main frequency is up to 880MHZ
- Using independent WIFI6 chip, MT7905D and MT7975D, the rate is up to 1800Mbps
- Using high-speed 256MB DDR3, with 16MB Nor Flash

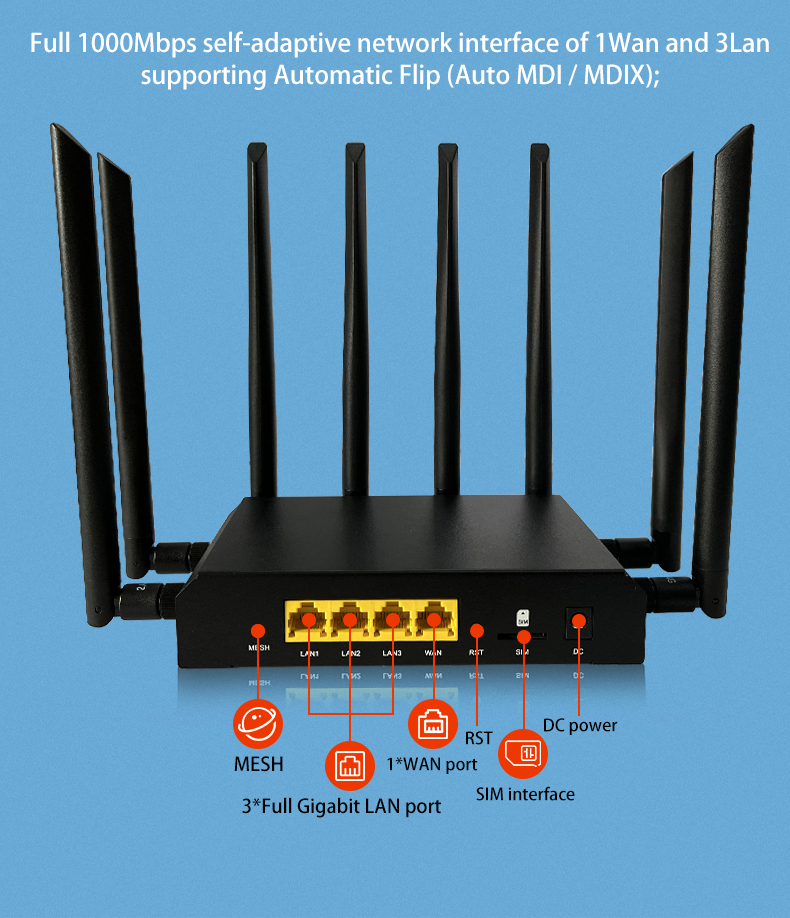

- 1WAN+3LAN 1000M adaptive network port, support auto flip (Auto MDI/MDIX)..
- Support "one-key flashing mode", that is, long press the reset button to enter the rescue flashing mode...
- Built-in M.2/Mini-PCIE standard interface (choose one of the two), which can be used to connect to 5G/4G mobile communication modules
- External standard SIM card (large card) interface and built-in eSIM (QFN-8 6mmx5mm) card interface, support SIM/USIM card
- External high-gain WiFi antenna, wireless signal 360 degrees without dead angle
Product Datasheet
Ports |
WAN* 1,1000Mbps(Auto MDI/MDIX) IEEE 802.3/802.3u/802.Ab |
LAN*3,1000Mbps(Auto MDI/MDIX) IEEE 802.3/802.3u/802.Ab | |
SIM slot |
Spring type SIM slot*1, QFN-8(6mmx5mm) eSIM*1, SupportSIM/USIM |
Power adapter |
DC5.0*2.1MM slot |
Button |
Reset button* 1, MESH button*1 |
Antennas |
OmnIdirectional External 5dbi 2.4G antennas*2 |
OmnIdirectional External 5dbi 5.8G antennas*2 | |
OmnIdirectional External 5dbi 5G/4G antennas(5G antennas* 4, 4G antennas*2) |
Processor |
MT7621A MIPS Dual Core CPU, 880MHZ main frequency |
WiFi chipset |
MT7905D+MT7975D IEEE 802.11n/g/b/a/AC/ax, max speed up to 1800Mbps |
RAM |
DDR3 256MB |
Flash |
Nor Flash 16MB |
NAND Flash |
