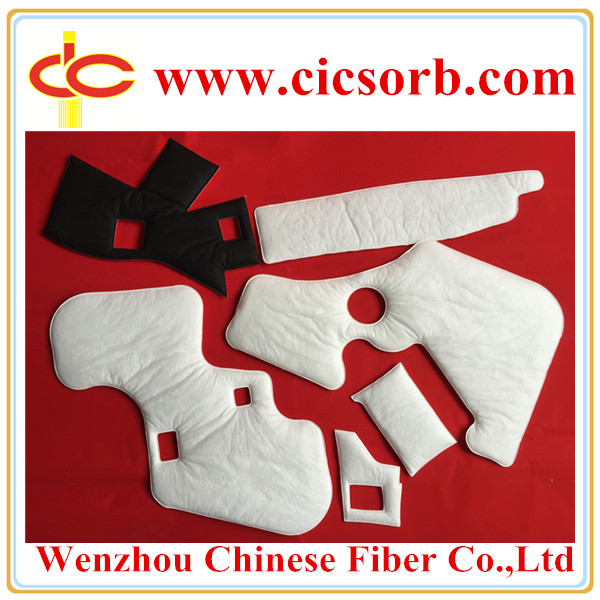

Automotive interior trim sound absorption materials

CICSORB Acoustics is one of the word's largest producers of acoustical fiber insulation, and a leading producer of automotive fiber-based die cut and edge sealing products. CICSORB Acoustics is made by melt blowing micro-fiber including diameter 1-3 micron superfine fiber (Polypropylene) and 20-30 micron staple fibers (Polyester). the products has good performances of acoustic insulation, meanwhile it has more characteristics as: Environmental, Light weight, Hydrophobic, Compressible, Flexible installation etc. CICSORB Acoustics draws upon its expertise in fiber production, technical engineering and design innovation to provide world class automotive NVH Solutions.

 General Properties

Composition Web	65% Polypropylene + 35% Polyester
Composition Scrim	One side 100% Polypropylene fabric
Color	One side black scrim, both side Embossed
Material Weight	650 ± 20 g/m2
Material Thickness	40 mm ± 2mm
Density	17.0 Kg/m3
Flammability	0mm/min (A-0)
Heat aging	120℃ for 2000 Hours
Tensile Strength	MD: 9.0-10.0 N    CD: 10.0-12.0 N
Moisture absorption	≤ 0.4%
Heat Conductivity	0.032 W/mK
Dimensions	1.52 X 20 meters

Key benefits

 Reduces vehicle weight when compared with felt, foam and polyester materials.

 Easy to compress and highly conformable, enabling installation in smaller cavities.

 Production costs can be reduced as less material is required.

 Hydrophobic, non-woven structure allows both interior and exterior use without the need for a waterproofing barrier.

 Easily recycled as it is a Polypropylene blend the product resists mould and mildew growth so no odors or material degradation occurs.
