| Rated Power: | 5kw |
|---|---|
| Frequency: | 50hz |
| Speed: | 3000 |
| Output Type: | AC Single Phase |
| Brand Name: | JDL |
| Rated Current: | 22A |
| Rated Voltage: | 220v |
| Model Number: | JDL6700XE |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

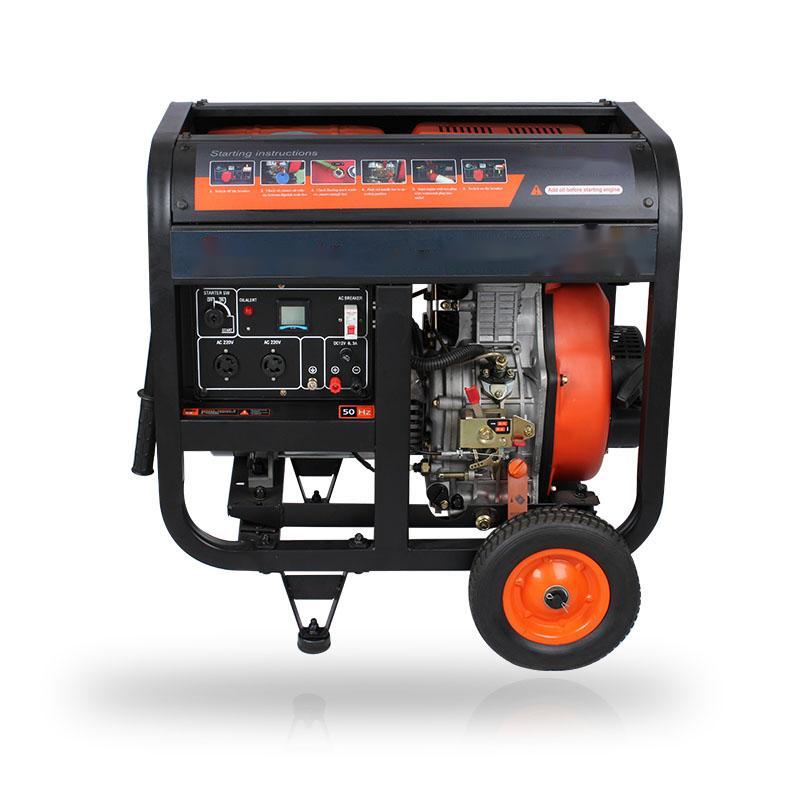

DIESEL GENERATOR Model
JDL6700X Rated Frequency [Hz]
50 Rated Voltage [v]
220 Rated Output Power [Kva]
5.0(6.3) Max Output Power [Kva]
5.5(6.9) Phase Number
Single Excitation Transistorized
Self-excitation, brush Power Factor Cos Φ
1 Insulation Grade
F Fuel Tank Capacity [L]
12.5 Frame Type
25 * 25mm Squre tube frame with 4 wheel Engine Model
KD186FAE Starting System
Electric starter Engine Type
1-Cylinder,4-Stroke,Air-cooled, Veritical Broke * Stroke [mm]
86 * 72 Displacement [L]
0.418 Compression Ratio
19.5 Rated Rotation Speed [rpm]
3000 Rated Power [Kw]
14:24 Lube [L]
1.65 Fuel Consumption [g/kwh]
280 Fuel Type
0#(summer), -10#(winter), Diesel oil Lube
SAE10W30 ( above CD grade ) Overall Diemension [mm] ( L*W*H)
740* 505*630 Net Weight [kg]
113
