High Voltage 3.6v Bobbin type Li-SOCl2 Battery 36000mAh capacity  DD size for Use with Smart card instrument, water meter, electricity meter, gas meter, heat meter, Automatic Meter Reading system.

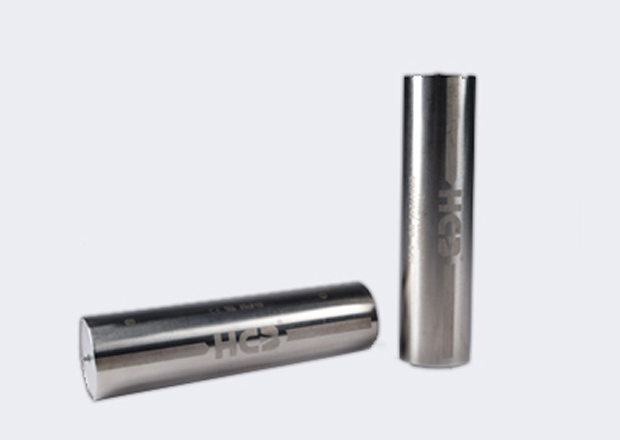

Details of ER341245 Li-SOCl2 Cylindrical Battery



Product Details

Place of Origin	China
Brand Name	HCB
Certification	CE/ULUN//RoHS
Model Number	ER341245/DD Model



Payment & Shipping Terms

Minimum Order Quantity	1K pcs
Price	Negotiable
Packaging Details	Special design for Air/Sea/Courier transportation
Delivery Time	35 workdays
Payment Terms	T/T, L/C
Supply Ability	Two million units per month



Advantage of ER341245 Li-SOCl2 Cylindrical Battery

High and Stable Voltage

Energy Density up to 590Wh/kg

Long Shelf Life (less than 1% per year after 1  year of storage at +25℃)

Wide Operating Temperature (-55℃~+85℃)



Specification of ER341245 Li-SOCl2 Cylindrical Battery



Electrical characteristics	Open circuit voltage (at 25°C)	≥3.65V
	Nominal capacity	36000mAh
	(at +25°C, the battery is discharged at a continuous current of 4mA until the voltage reaches cut-off voltage 2.0V. the capacity can vary at a different temperature, discharge current or cut-off voltage. )
	Maximum continuous current	400mA
	(at +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity. )
	Maximum pulse discharge current	800mA
	(at +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity with max pulse for 3 seconds after 27 seconds break. the discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)
	Storage (recommended)	≤+30°C
	(for more severe conditions, consult HCB)	≤75%RH
	Operating temperature range	-55°C~+85°C
	(Operation above ambient temperature may lead to reduced Capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristics	Diameter (max)	34.2mm
	Height (max)	124.5mm
	Typical weight	200.0g
	Li metal content	9.5g



General Safety Instructions of ER341245 Li-SOCl2 Cylindrical Battery

Do not reverse battery, follow strictly the signs + and shown on batteries and appliances. If batteries are put in the wrong way they are bound to become hot very quickly. this can lead to gas or toxic material leakage and/or to a violent rupture.

Do not incinerate or mutilate, may burst or release toxic material.

Do not deform batteries. Batteries are not to be crushed, drilled into, or damaged in any other way. this can lead to toxic material or gas leakage and/or violent rupture.

Do not throw the battery into the water. this can cause an explosion.

Do not charge primary batteries. this can cause gas leakage and will lead to violent rupture and/or fire.



Drawing of ER341245 Li-SOCl2 Cylindrical Battery
