| Nominal Voltage: | er34615 lithium battery |
|---|---|
| Battery Type: | er34615 lithium battery |
| Size: | er34615 lithium battery |
| Brand Name: | HCB |
| Color: | er34615 lithium battery |
Quick Details
Specifications

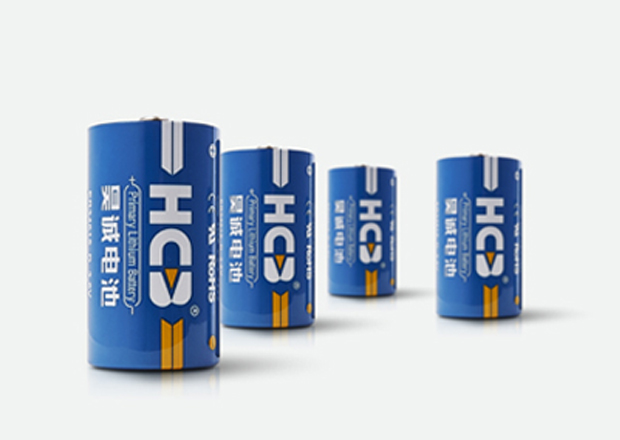

3.6 Volt primary Lithium Battery Non-Rechargeable ER34615 D Size 19000mAh Lithium-Thionyl Chloride (Li-SOCL2) battery for Utility Metering, Automatic meter reading(AMR), advanced metering infrastructure(AMI), electricity meters, gas meters, water meters, heat meters.
Details of Li-SOCl2 Cylindrical Battery
Product Details
Place of Origin |
China |
Brand Name |
HCB |
Certification |
UN/CE/UL |
Model Number |
ER34615 Bobbin type D size |
Payment & Shipping Terms Details
Minimum Order Quantity |
1K pcs |
Price |
Contact with HCB battery |
Packaging Details |
Special design for Air/Sea/Courier transportation |
Delivery Time |
≤35days |
Payment Terms |
T/T, L/C, PayPal |
Supply Ability |
Two million unit per month |
Advantage of
High and Stable Voltage
Energy Density up to 590Wh/kg
Long Shelf Life (less than 1% per year after 1 year of storage at +25℃)
Wide Operating Temperature (-55℃~+85℃)
Specification of Er34615 Li-SOCl2 Cylindrical Battery
Electrical characteristics |
Open circuit voltage (at 25°C) |
≥3.65V |
Nominal capacity |
19000mAh | |
(at +25°C, battery discharged at continuous current 2mA until voltage reaches cut-off voltage 2.0V. the capacity can vary at a different temperature, discharge current or cut-off voltage.) | ||
Maximum continuous current |
250mA | |
(New cell*, at +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity.) | ||
Maximum pulse discharge current |
400mA | |
(400 mA/0.1 second pulses, drained every 2 minutes at +25°C from undischarged the new cell with 10 uA base current, yield voltage reading above 3.0V. the readings may vary according to the pulse characteristics, the temperature, and the's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.) | ||
Storage (recommended) |
≤+30°C | |
(for more severe conditions, consult HCB) |
≤75%RH | |
Operating temperature range |
-55°C~+85°C | |
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) | ||
Physical characteristics |
Diameter |
32.7±0.2mm |
Height |
60.4±0.8mm | |
Typical weight |
105.0g | |
Li metal content |
5.2g | |
Drawing of ER34615 Li-SOCl2 Cylindrical Battery
as a lithium battery china manufacturer,HCB isCommitted to the primary lithium battery field, with a full range of primary lithium battery R&D capabilities and boasting the longest history of production.
