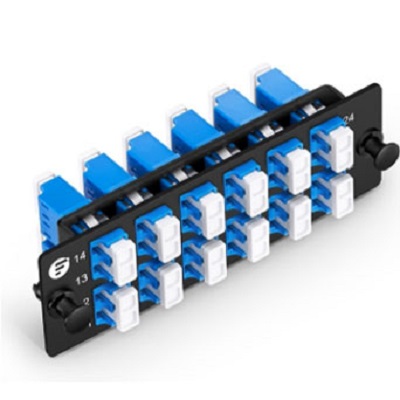

the FHD adapter panel can be quickly stuck into the chassis and is widely used for optical fiber trunk wiring, branch wiring, and device wiring. the color of the adapter complies with the TIA/EIA-568-C.3 standard, which makes it easy to identify optical fiber types and facilitate management and maintenance.



Specification of FHD Fiber Adapter Panel

Number of Adapters	12	Number of Cores	24 core
Adapter Type	LC/UPC Duplex (blue)	Optical Fiber Type	9/125 OS2 single-mode microns
Tube Material	Zirconia ceramics	Panel Material	Cold rolled steel, black frosted coating
Insertion Loss	≤0.2dB (0.1dB conventional value)	Return Loss	≥50dB
Service Life	≤500 insertion and removal times	Size (H x W)	35x109mm (1.38''x4.29'')
Quality Standard	ISO14001, ISO9001, ROHS	Application of Collocation	FHD series distribution box
