High-density wiring application. the optical fiber distribution box can be installed in an FHD series frame and wall-mounted distribution box to provide high-density wiring and meet future capacity expansion requirements.

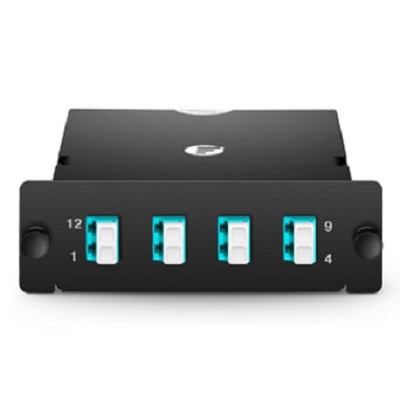

Specification of FHD MTP-8 Cassette

Number of Optical Fiber Cores	8 cores	Optical Fiber Type	50/125 multimode OM4 microns
Front-end Connector	4LC/UPC Duplex	Back-end Connector	1MTP/APC male (with guidewire)
the MTP Adapter	Key up-Key down	Size (H x W)	35x109x118mm
Insertion Loss	MTP≤0.35dB, LC≤0.2dB	Return Loss	MTP≥60dB, LC≥50dB
Operating Temperature	-10℃~+60℃	Storage Temperature	-10℃~+60℃



as one of,PHX FIBER products are widely applied in fiber optical communication systems, fiber optic sensors, CATV, fiber lasers and other fiber optical instruments, etc.



as one of , we provide differentMtp cassette types, such asSingle mode mpo mtp cassette ,Mtp fiber cassettes ,Mtp to lc cassette,.
