JDBZ-23 runs in a fast, effecient and reliable way with low noise and Low power consumption, adopting slim and stylish design blending into the aesthetics of the surrounding space. It comes with multiple physical Barrier height and lane widths providing easy access to the disabled, Wheelchairs, and people with large objects or deliveries, meeting both Accessibility and security requirements. Finally, optical swing arm Turnstile JDBZ-23 is flexibly compatible with all access control systems with dry contact output, and provides single directional and Bi-directional access control modes.

Features

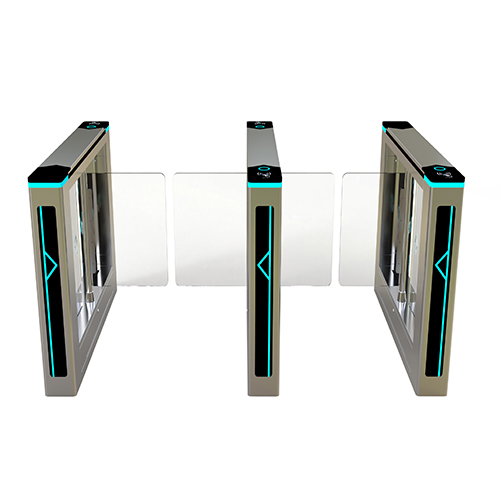

1. Slim cabinet design for a smaller footprint
2. Detects tailgating and exact position of users
3. Intelligent drive system and pinpoint control of moving panels
4. Multiple operational modes including controlled passage, free passage and visitor
5. Supports very rapid throughput
6. Superior unauthorized passage and unauthorized presence detection
7. Standard and handicapped width lanes have same cabinet dimensions
8. Perfectly suited to any type of architecture
9. Fault visualization for easy to check on site
10. Widely used in various indoor and outdoor environments

Applications
Industrial parks
Commercial buildings
Fitness center
Universities
Public transportation systems
Government facilities

Parameters

Housing Material	#304 stainless sheet
Dimension	1400 x 185 x 980mm
Power Supply	AC220V / AC110V, 50/ 60 Hz
Channel Width	600~900mm
Drive Motor	DC 24V brushless motor
Pass Speed	30 ~35 persons per minute
Input Interface	Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction	Bi-directional
Communication interface	RS485
Gate open when power failure	Yes
Open Time	0.2 second
Life Cycle	3 million times
Working Temperature	-30°C~+70°C
Working Environments	Indoor, outdoor  (with shelter)



Swing Arm Optical Turnstile Design

What is swing arm optical turnstile?
Swing arm optical turnstile, a typical optical turnstile, utilizes the Internal infrared technology coupled with a physical barrier to provide Added security against unwanted entry. Swing barrier optical turnstile Cabinets can be installed as close to or as far apart from each other as Needed. this provides flexibility and allows lanes to be handicap Accessible.

how does swing arm optical turnstile work?
Swing arm optical turnstile, functions by fixing in pairs, by which it Is important to choose the right number of these turnstiles for specific Projects. Meanwhile, considering the quantity for pedestrian traffic and for access for the disabled is also very important. Take swing gate Turnstile JDBZ-25 as example, which include single-wing type and Dual-wing type. 2 single-wing type are required for a single-lane pass, and a 2-lane passage includes 2 singe-wing type JDBZ-25 fixed on each Side of a dual-wing type JDBZ-25. In addition, most of our touchless Turnstiles provide wide lane up to 900mm width for disabled access.

Can swing arm optical turnstile be integrated with 3rd party access control systems?
off course, swing arm optical turnstile is comptiable with a wide Variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera And token applications can integrate with such access control Turnstiles.

What will happen when power  off and in emergency situation?
Swing arm optical turnstile instantly automatically unlocks for free Passage under emergency situations (power outages, fire, etc)

Can swing arm optical turnstile be used indoor and outdoor?
off course, swing arm optical turnstile is made for indoor or outdoor Situations. for all outdoor applications, we use 304 stainless steel to Prevent corrosion.

Does swing arm optical turnstile give access to ADA pedestrians?
Yes, swing arm optical turnstile provides wide lane up to 900mm for the disabilities to allow for wheelchairs.
