| Particle: | 0.6-0.8um |
|---|---|
| Alloy Specification: | As list |
| Brand Name: | OSTON |
| Application: | Corrugated Paper Slitting Machine |
| Material: | Tungsten carbide |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Brief introduction of Oston carbide slitters
Main Dimensions of Oston carbide slitters
Remark: Customized desigh is more than welcome here.

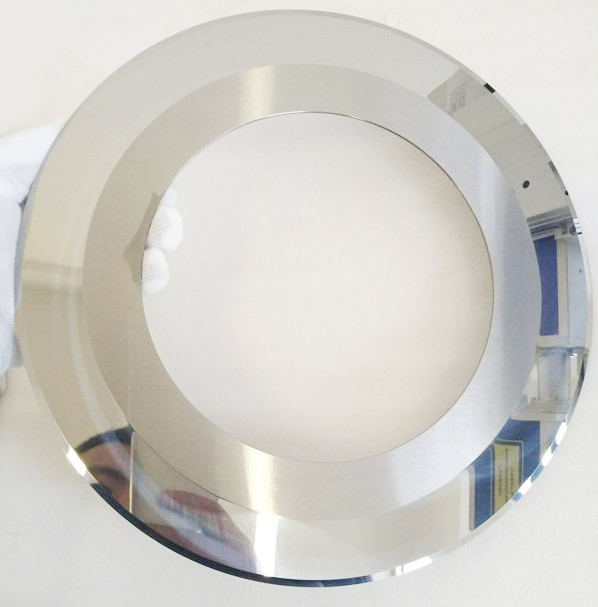

Detailed pictures of Oston carbide slitters
| Item name | Tungsten carbide slitters |
| Material | Tungsten carbide |
| Quality grade | YG12X/YG13X original material |
| Specification | as spec table below |
| Surface treatment | Ground and polished,tin coated is availbel too |
| Bevelling | Single bevelled,double bevelled,cutomized angle is acceptable |
| MOQ | 1 PC for stock we have,5PCS for customized design |
| Delivery time | 15 natural days for samples,20-22 days for mass production |
| Application | Corrugated paper, carton board and so on |
Main Dimensions of Oston carbide slitters
| No. | Specification (ODxIDxT: mm) |
Holes and Key slots | Available for machine |
| 1 | Φ220*Φ115*1 | 3 Holes*Φ9 | AGNATI |
| 2 | Φ230*Φ110*1.1 | 6 Holes*Φ9 | FOSBER |
| 3 | Φ230*Φ135*1.1 | 4 Key slots | FOSBER |
| 4 | Φ240*Φ32*1.2 | 2 Holes *Φ8.5 | BHS |
| 5 | Φ240*Φ115*1 | 3 Holes*Φ9 | AGNATI |
| 6 | Φ250*Φ150*0.8 | PETERS | |
| 7 | Φ257*Φ135*1.1 | FOSBER | |
| 8 | Φ260*Φ112*1.5 | 6 Holes*Φ11 | ORANDA |
| 9 | Φ260*Φ140*1.5 | ISOWA | |
| 10 | Φ260*Φ168.3*1.2 | 8 Holes*Φ10.5 | MARQUIP |
| 11 | Φ270*Φ168.3*1.5 | 8 Holes*Φ10.5 | HSEIH |
| 12 | Φ270*Φ140*1.3 | 6 Holes*Φ11 | VATANMAKEINA |
| 13 | Φ270*Φ170*1.3 | 8 Holes*Φ10.5 | |
| 14 | Φ280*Φ160*1.0 | 6 Holes*Φ7.5 | MITSUBISHI |
| 15 | Φ280*Φ202*1.4 | 6 Holes*Φ8.0 | MITSUBISHI |
| 16 | Φ291*Φ203*1.1 | 6 Holes *Φ8.5 | FOSBER |
| 17 | Φ300*Φ112*1.2 | 6 Holes*Φ11 | TCY |

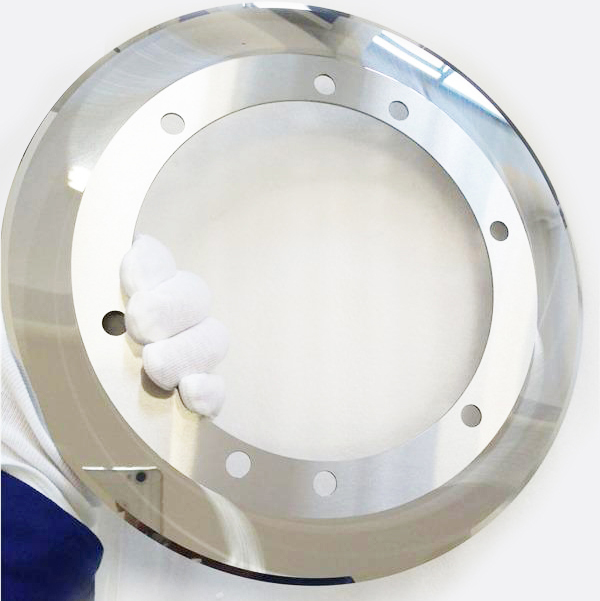

Detailed pictures of Oston carbide slitters
