| Usage: | power amplifier |
|---|---|
| Power: | Electronic |
| Brand Name: | Ponovo |
| Warranty: | 12month |
| weight: | 20kg |
| Model Number: | PA30Bip |
| Place of Origin: | China (Mainland) |
| color: | gray-white |
| Power supply: | 110/220V AC 50/60 Hz |
| Max. output power: | >210VA(30A output) |
Quick Details
Specifications
Description of Ponovo PA30Bip Portable Power Amplifier
the PA30Bip is real time simulation amplifier with three-phase current and four-phase voltage.this digital power amplifier is similar to PA30Bi.
the device is designed based on linear amplifier principle. It is a very light and portable solution with 3 channels of current output and 4 channels of voltage output. Each current output channel is with 30A RMS, 210VA. Each voltage output channel is with 120V RMS, 60VA. It is with high frequency range up to DC 5kHz ±1dB and high accuracy of time-delay and step response, only 20μs.It can be used for plenty of simulation applications, HIL or PHIL in Power System.

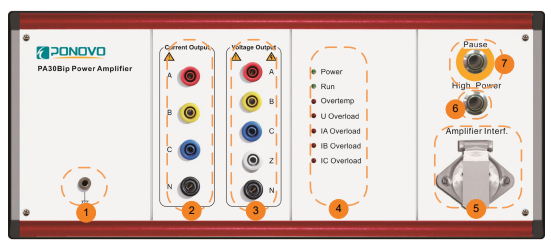

Front Panel
Rear Panel
Main Specifications
| Current | 3x0 ~ 30 A RMS |
| Max. Output power | 210VA(30A output) |
| Input signal | 0~5V RMS(± 7.07Vpek) |
| Current Accuracy | 0.2%(0.5A-30A) |
| Current Typical Accuracy | < 0.1% |
| Differential input impedance | 20k ohm |
| Gain | 6A/V |
| Harmonic Distortion Ratio | ≤0.2% |
| Linearity | ≤0.2% |
| Phase accuracy | 0.2° |
| Frequency range | DC-5kHz±1dB |
| Step response | < 20us |
| Input/output delay | < 20us |
| Voltage | 40 ~ 120V RMS |
| Max. Output power | 60VA(120V output) |
| Input signal | 0~5V RMS(± 7.07Vpek) |
| Voltage Accuracy | 0.1%(5V-120V) |
| Voltage Typical Accuracy | < 0.05% |
| Differential input impedance | 20k ohm |
| Gain | 25V/V |
| Power supply | Single phase 220V AC 50/60 Hz |
| Chassis | 4U 19 inches |
