| Brand Name: | Elecnova |
|---|---|
| Frequency: | 100MW |
| Frequency Range: | B3/B5/B8 |
| Polarization: | / |
| Weight: | / |
| Model Number: | EC6 |
Quick Details
Specifications
Basic Info.
Model NO.
EC6
Usage
Wireless Transmission, Industrial
Type
Wireless
Support Network
GPRS
Information content
Data
Certification
CE, CCC
Condition
New
Application
Wireless Transmission, Industrial
Protocol
Modbus-RTU
Physical Interface
RS-485
Communication Rate
Default 9600BPS
Protection Class
IP20
Working Temperature
-40°c -- 70°c
Relative Humidity
≤95%Rh
Working Altitude
≤2500m
Antifouling Level
No Corrosive Gas
Transport Package
Wooden Box
Trademark
ELECNOVA
Origin
China
HS Code
9030899090
Production Capacity
20000PCS/Per Month
Product Description
Product Name: High coverage condition monitoring value display Wireless transmission rs 485 communication industrial nb-iot module
EC6 module is a wireless transmission module based on NB-IoT mode, using the existing mobile network Can easily let your device achieve wireless connection with Internet. It has many advantages, such as wide network coverage, flexible and fast networking.
Technical Specifications
| Project | Parameters | |
| Wireless | Frequency band | B3/B5/B8 |
| Interface | ||
| Network type | NB-IoT | |
| SIM card voltage | 3V,1.8V | |
| Antenna interface | 50Ω/SMA(female head) | |
| RS485 | Communication | Half duplex |
| Interface | ||
| Communication baud rate | 2400~19200bps,default 9600bps | |
| Data format | N81/n82/o81/e81,default n81 | |
| Main module | Model | PD194Z-E1X |
| Working environment | -25C~70C,≤93%RH | |
| Storage environment | -40C~85C,≤93%RH | |

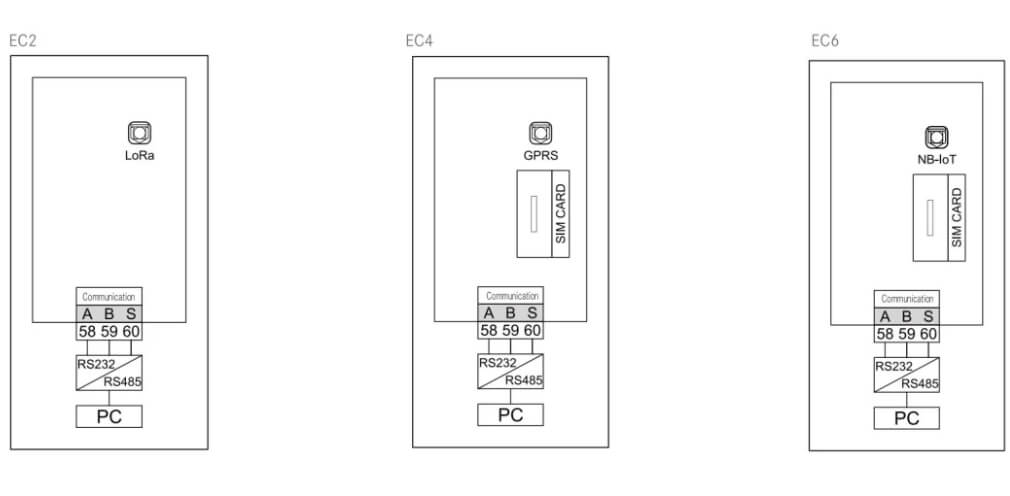

Typical Wiring
