Introduction:

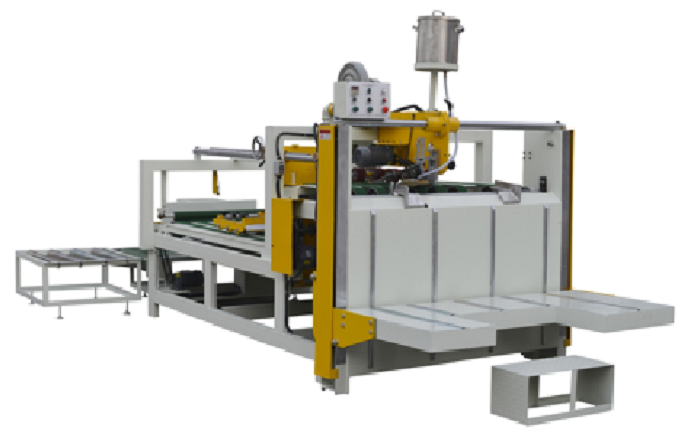

MJZXJ-2 Semi-auto Carton Gluer Machine is new machine for carton production in recent years. It is mainly used for the glue of the carton. It can glue for 3-layer, 5-layer, 7-layer paperboard and so on. the machine structure is easy, working is stable, operation is simple, production efficiency is high, gluing quality is good, production cost is very low. the cost is 15times lower than steel wire stitcher machine.

Machine structure: Machine frame, up and down working-table, front transport equipment, front revising equipment, middle transport equipment, middle press equipment, finished product side output equipment, electrical control equipment.

Characteristics:

1. Easy and reliable operation system.

2. Novel design of the whole machine.

3. High-speed changing sizes.

4. Automatically counting and strap setting.

Technological Parameters:

Model	MJZXJ-2
Max. Size (L+W)*2	2460mm
Min. Size (L+W)*2	340mm
Max. Size (W+H)*2	1515mm
Min. Size (W+H)*2	240mm
Paperboard feeding height	900mm
Power	2.2kw
Mechanical Speed	40m/min
Machine Packing Size
Machine Weight	2000KG

Note: We can produceDifferent sizeMachine as customer'S requirements.
