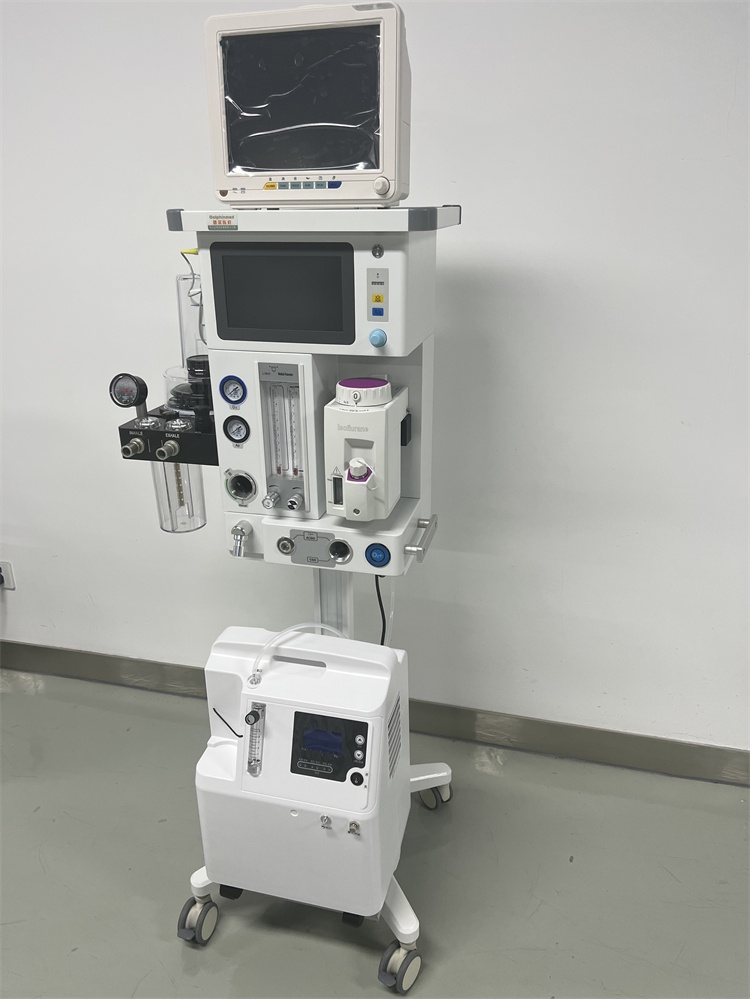

Vet Anesthesia ventilator

Respiration mode

PCV,VCV,SPONT,DEMO

Bellow

Big animal t:300-1500ml,small animal:0-300ml

Screen

9 inches touch screen

Waveform

Pressure,Flow,Volume

Loop

PV,PF,FV

Tidal volume

Mechanical control:20-1500ml

Manual control:5-1500ml

BPM

1-100bpm

I:E

9.9:1to1:9.9

Inspiratory time

0.1s-10.0s

Apnea

0-50%

PEEP

off,3-20cmH2O

Pressure support

5-60cmH2O

Flow trigger

0.5-20L/min

Pressure trigger

-1~20cmH2O

PSV Inspiratory terminal level

25%

Monitoring

Tidal volume,Breathing rate,Spontaneous breathing rate,I:E,Spontaneous minute ventilation volume,Minute ventilation peak airway pressure,Average airway pressure,PEEP,Inspiratory platform pressure

Alarm parameters

Tidal volume,MInute ventilation volume,Frequency,Airway pressure,Continuous airway pressure,Negative pressure alarm,Apnea alarm,Air supply pressure failure alarm,Power supply alarm,Low battery alarm,Battery exhaustion alarm,Oxygen battery failure alarm,FIO2(optional),FICO2(optional)

Power supply

220V±10%,50HZ±1%

Vet Main unit

Ventilation mode

Open,Closed,half-closed,half-open

Drive mode

Pneumatically and electrically

Application

0.5-100kg animal

Anesthesia Vaporizer

Isoflurane,Sevoflurane,Halothane

Oxygen Flush

25L/min~75L/min

Gas source pressure

Oxygen 0.25Mpa~0.65Mpa

Trolley

High-quality aluminum alloy profile, with storage frame and special interface for exhaust gas emission

Flowmeter

Oxygen flow meter for animals,

Scale range:0~5L/min

CO2 Absorber

Sodium Lime Tank Capacity

500ml-700ml

Absorber

the animal-specific integrated circuit can be sterilized at high temperature and high pressure at 134 ℃. the dedicated interface can be connected to an open circuit, suitable for low-flow small animals.

Valve piece

Visible ceramic valve piece, easy to observe animal breathing.

Pop off valve

DIrects the wasTe anesthetic gas from the machine to a scavenging system. In the completely open position, the pop-off valve will release pressure at 2 cm H2O, while maintain a constant passive volume in the breathing bags.

Other advantage

Strong air tightness, reduce airway resistance;Design of quick replacement of sodium lime Canister

Anesthesia Vaporizer

Concentration scope

Isoflurane:0.2%~5%

Sevoflurane:0.2%~8%

Flow rate scope

0.2L/min~15L/min

Anesthetic capacity

Dry:340ml

Wet:300ml

Mounting type

Selectatec or Cagemout
