| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Voltage: | 380V50hz (Others specify ) |
| Brand Name: | CoreNew |
| Condition: | New |
| Model Number: | CNR-MT3000 |
Quick Details
Specifications

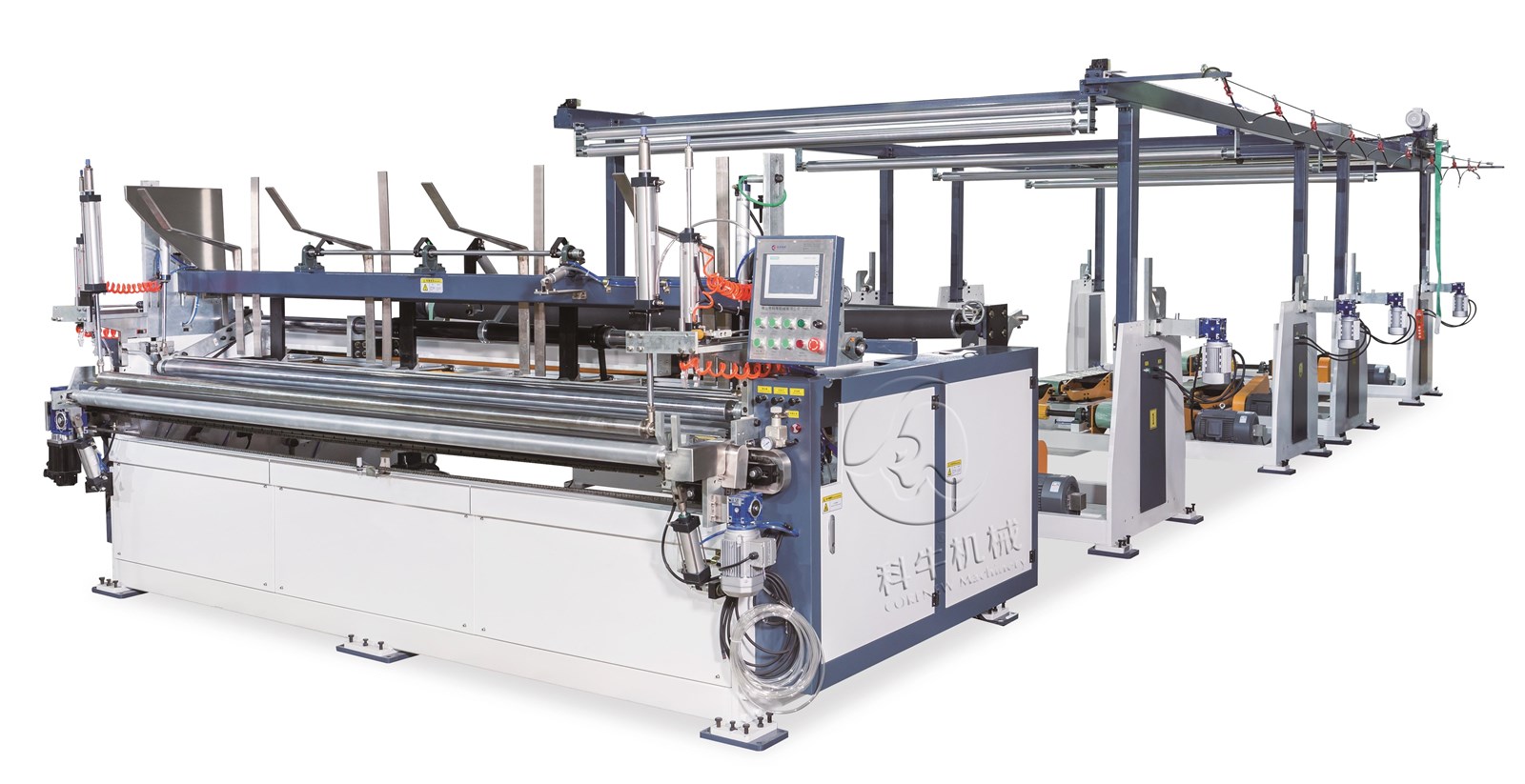

CNR-MT3000 AUTOMATIC TOILET ROLL REWINDING MACHINE
1.Brief Introduction:
this rewinding machine has functions can produce Maxi roll (JRT), kitchen towel and toilet roll, the production roll diameter from80Mm to300mm, full automatic rewinding, automatic transfer, cutting and then packing. The machine adopts the independent motor frequency conversion speed regulation, with a stable working, easy operation,the high-grade quality.
2. CHARACTERISTICS:
1. Start-stop type with production speed 250m/min
2. Integrated with core and coreless rewinding, diameter from 80-300mm adjustable.
3. Adopted PLC & HMI, independent motor drive and frequency conversion control.
4. Equipped with automatic core loading, tail trimming gluing sealing and riding roller function.
5. Equipped with coreless function.
6. Equipped with edge embossing unit with airbag pressurization.
7. Automatic unload function, connection with production line.
8. Unwind stand with crane loading paper roll.
3.Techincal parameters: Model 2200 3000 3700 Width of parent reel 1750-2150mm 2550-2950mm 3200-3600mm Diameter of parent reel ≤1500mm (customization is required in case of >1500) Core diameter of parent reel 76mm (customization is required in case of other sizes) Size of finished product 80-250mm Paper core diameter 35-76mm Perforation Rotating perforating roll with 4 anvil blades Winder Integrate core/coreless equipment, and maxi-roll core adapters Control system PLC, converter, electromechanical and optic integrated control Speed 250m/min Optional items Unwind stand 1-4 layers, independent driving, crane loading parent reel Embossing device Single embossing system: Steel-to-rubber, steel-to-steel, steel-to-paper Lamination system: Point-to-point, nested-to-nested, decor
