1.Brief Introduction:

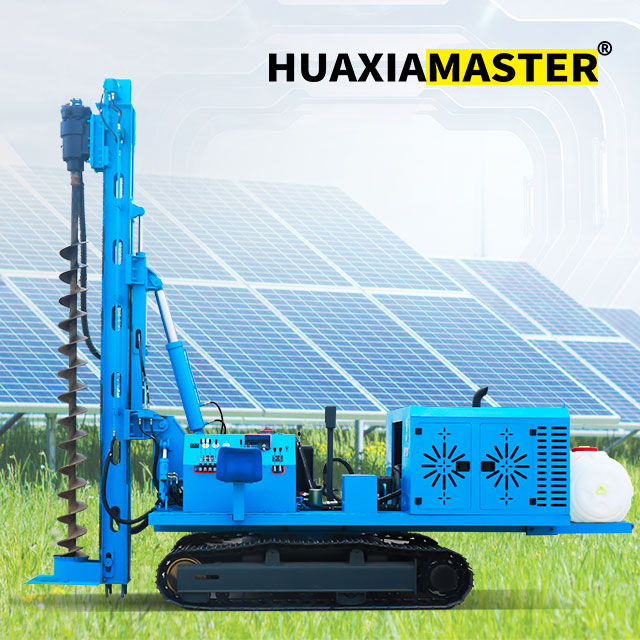

GFHY series photovoltaic hydraulic pile driver is an important equipment for the construction of photovoltaic power stations. It is mainly used for pile driving and hole drawing work of pile foundation, providing a solid foundation for the installation of photovoltaic brackets. Photovoltaic hydraulic pile driver can adapt to different geological conditions such as mountains, hills, deserts, etc., and can choose spiral drilling, down-the-hole impact and other piling methods for construction operations, providing a more efficient, environmentally friendly and reliable solution for the construction of photovoltaic power stations.

2.Techincal parameters:

Drilling rig model		GFHY-3500	GFHY-4000	GFHY-5000
Machine parameters	Track shoe width	400mm	400mm	400mm
	Gradeability	30°	30°	30°
	Walking speed	3-5	3-5	3-5
	L*W*H	4500*2200*2800mm	4500*2200*2800mm	4500*2200*2800mm
	Weight	5.4T	5.7T	6T
Power system	Diesel engine	4108/6108	4108/6108	4108/6108
	Rated power	78kW/92kW	78kW/92kW	78kW/92kW
Hydraulic system	Power head	Internal five-star motor power head	Internal five-star motor power head	Internal five-star motor power head
	Main pump model	CBG1-F050/050/032	CBG1-F050/050/032	CBG1-F050/050/032
	Main pump speed	500-2000r/min	500-2000r/min	500-2000r/min
	Main pump pressure	20Mpa	20Mpa	20Mpa
	Main valve flow	100L/min	100L/min	100L/min
	Main pump torque	2000N.M	2000N.M	2000N.M
Operation efficiency	Drill frame travel	4000mm	4500mm	5500mm
	Spiral hole diameter	300mm/ Customizable	300mm/ Customizable	300mm/ Customizable
	Auger drilling depth	0-3500mm	0-4000mm	0-5000mm
	Pneumatic drilling diameter	90~400mm	90~400mm	90~400mm
	Pneumatic drilling depth	1000~10000mm	1000~10000mm	1000~10000mm

3.Performance characteristics:

 It adopts advanced hydraulic system, with large torque of power head, high piling efficiency and low energy consumption.

 the chassis adopts engineering-specific crawler, with wide and stable crawler plate, good off-road performance, and can adapt to various complex and changeable terrains.

the chassis can be equipped with 360° rotation function to realize all-round drilling construction.

It is centrally controlled through the operating table, simple to operate, safe and reliable.

It is equipped with front and rear positioning cylinders, left and right swing cylinders and upper and lower telescopic compensation cylinders, which can accurately locate the pile hole position in three aspects.

the overall welding of the equipment is rigorous, and the wear-resistant parts adopt heat treatment process to avoid structural deformation, with a long service life and low failure rate.
