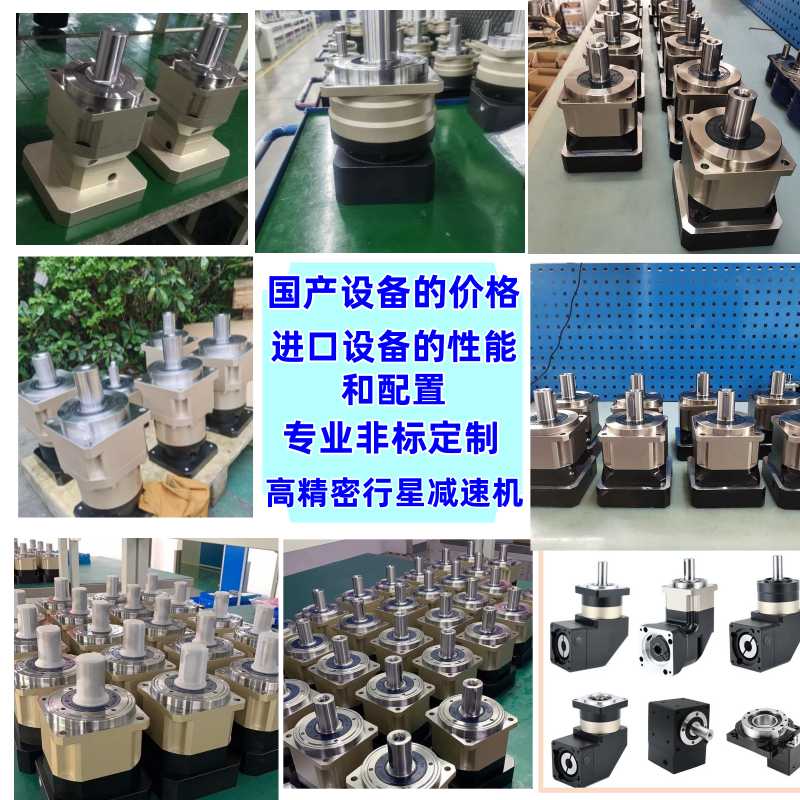

Huxing series right angle/angular planetary gearbox
Angle reducer, 90 ° output high precision, high efficiency, high torque and other characteristics. Widely used in the automation industry
Product specifications: 060, 090, 120, 160
P2: Standard backlash single section ≤ 11 arc minutes double section ≤ 14 arc minutes
Single speed ratio: 3, 4, 5, 7, 8, 10
Dual speed ratio: 12, 15, 16, 20, 25, 28, 30, 35, 40, 50, 70, 100
High efficiency
Single section: ≥ 94%
the Huxing brand right angle planetary reducer sets a new standard for low backlash, stable, reliable, and low-noise operation, and is compatible with all brands of servo motors. the precision right angle reducer is an excellent combination of precision, dynamics, and compactness, with numerous input and output forms and multiple reduction ratio options, achieving unparalleled flexibility of the reducer.
Product features: 1. Economy type 2. High performance 3. Low noise 4. Low backlash 5. Optimized transmission inertia 6. Low temperature rise 7. Long service life 8. Use of multiple sizes of motor shaft diameters 9. Small size and weight

Double section: ≥ 91%
the model characteristics of angular planetary gearboxes mainly include the following aspects:
Right angle steering function: the main feature of the angle planetary gearbox is that it turns at a 90 degree right angle between its input shaft and output shaft. this design allows the gearbox to provide flexible transmission direction changes in limited space

High precision and high rigidity: in order to meet the requirements of high-precision transmission, angle planetary reducers usually adopt high-precision gear processing technology and advanced assembly technology to ensure the meshing accuracy of gears and the smoothness of transmission. at the same time, the housing and shaft of the reducer are made of high-strength materials to improve the rigidity and load-bearing capacity of the reducer

Multi stage reduction ratio and high efficiency: the angular planetary reducer has a unique multi-stage reduction ratio design, which can efficiently output torque. the design of its planetary gear mechanism results in high transmission efficiency, a wide range of transmission ratios, smooth operation, and low noise

Sealed full oil seal design: the angle planetary reducer adopts a sealed full oil seal design to ensure that lubricating grease does not leak, and the patented internal gear ring design can effectively reduce noise
Wide application fields: Angular planetary reducers are widely used in various industrial sectors such as metallurgy, mining, engineering machinery, lifting and transportation, power, energy, building materials, light industry, and transportation, demonstrating their applicability and reliability in various industrial applications
