the whole machine frame adopts profile welding and manual aging treatment. the machine body is not deformed. the sanding machine runs more firmly, stable and reliable.
Choose the servo motor to achieve the accuracy of 0.01mm.
the height of the sanding roller is shown by the scale, the lifting precision can be accurate to 0.01mm.
Contact Roller adopts frequency converter to control the speed and it can sand the veneer and various paint.

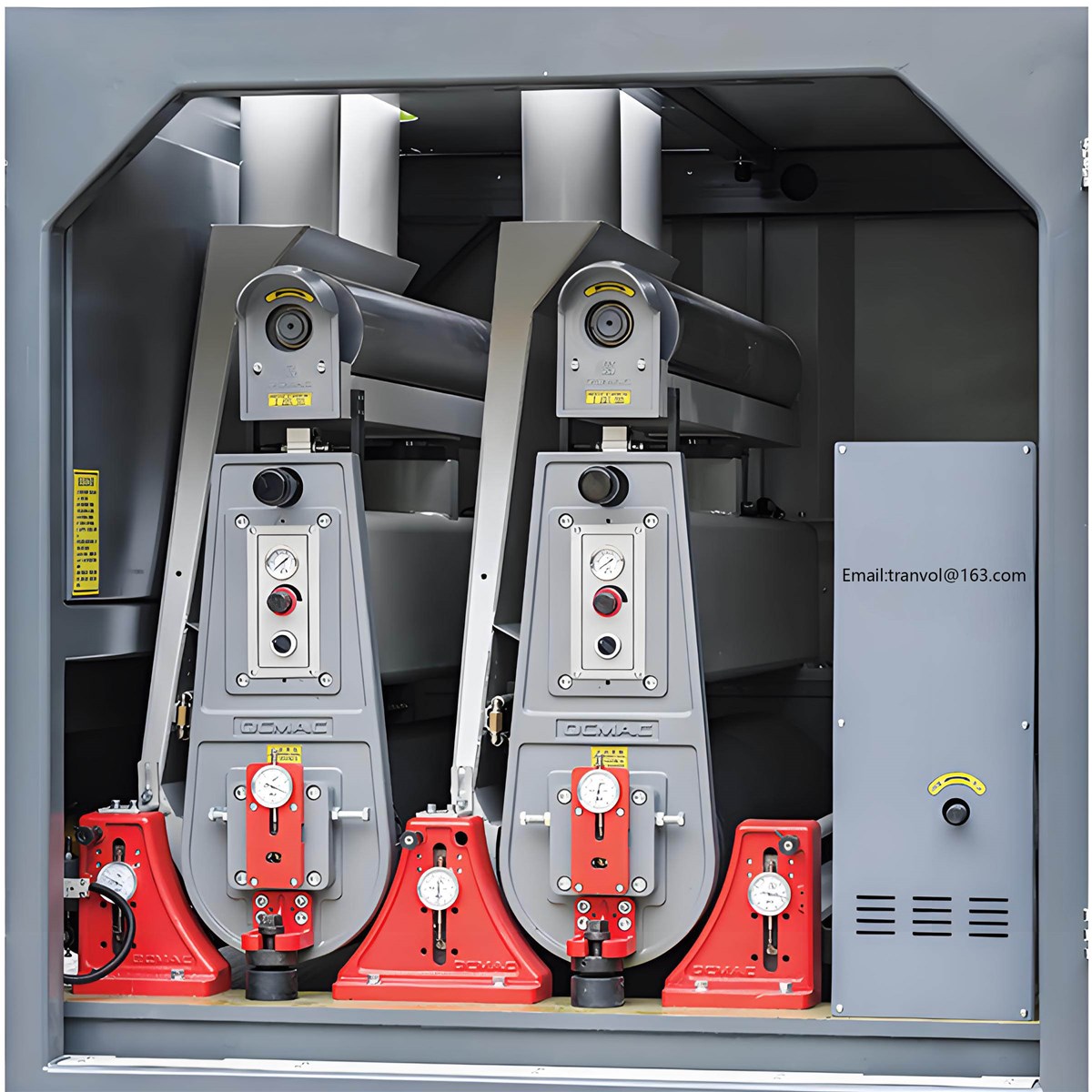

Configuration of Model SQG1300-2E Sander

It is suitable for fine sanding of resin paint, polyester paint, waterborne paint, PV, PU, PE and melamine etc. It can also be used for Auto line Operation.



TECHNICAL FEATURES



Working Width	60-1300mm
Working Thickness	3-120mm
Working Length	≥300mm
No.1 Sanding Belt Speed	3-12m/s
No.2 Sanding Belt Speed	3-12m/s
Feeding Speed	6-30m/min
Size of Sanding Belt (WC)	1330x 2200mm
Total Motor Power	39.12kW
Main Motor Power	15kW,15kW
Working Air Pressure	0.55Mpa
Consumption of Compressed Air	1.5m3/min
Volume of Sucked Air	13000m3/h
Speed of Sucked Air	25m/s
Overall Dimension (LWH)	2460x 2140x 2220mm
Net Weight	4350kg
