| Brand Name: | AiLF |
|---|---|
| Weight: | 0.7kg |
| Sampling Method: | Telemetry |
| Size: | 174x89x163mm |
| Alarm type: | Light |
| Place of Origin: | China (Mainland) |
| Name: | U10 Laser methane detector |
| Target Gas: | Methane(CH4) |
| Principle: | Laser Absorption Spectrum |
| Respond time: | 0.025s |
| Range: | 0~50,000ppm.m |
| Resolution: | 3ppm.m |
| Laser Class: | Class I Eye Safe |
| Detection Distance: | 150m |
Quick Details
Specifications

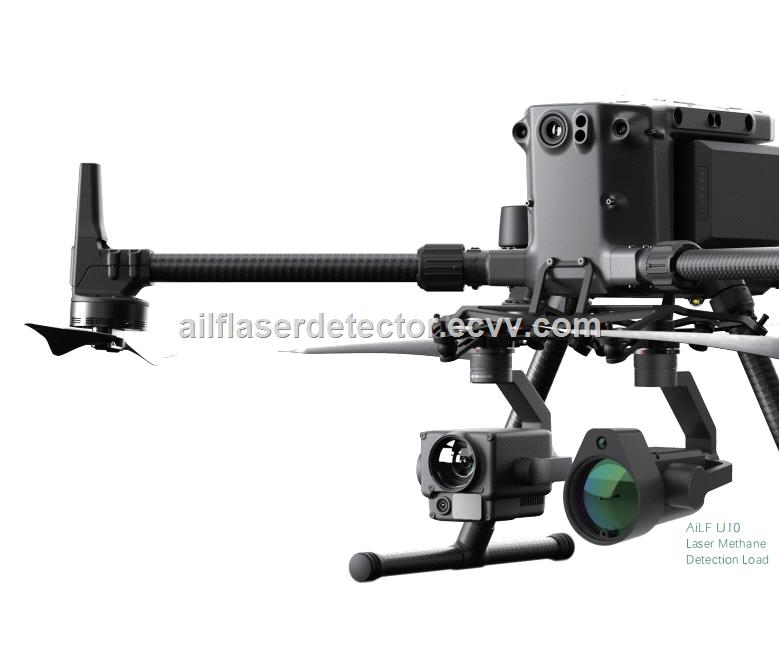

M300 Compatible AiLF U10 UAV Based Laser Methane Pipeline Leakage Detector

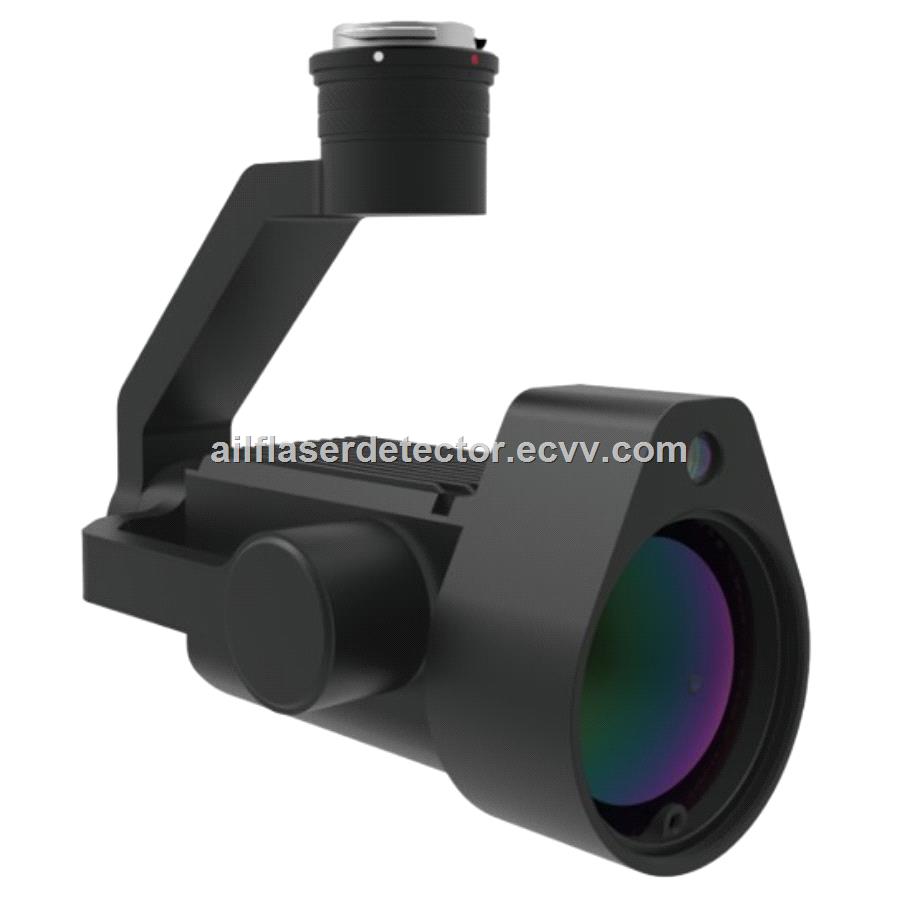

UAV based laser methane leakage detector(U10) is a gas detection device for remotely measuring methane gas using a drone as a carrier.the device emits a laser,an invisible infrared laser that measures the concentration per unit(ppm.M) of methane gas present at a long distance.
UAV based laser methane leakage detector(U10) is a gas detection device for remotely measuring methane gas using a drone as a carrier.the device emits a laser,an invisible infrared laser that measures the concentration per unit(ppm.M) of methane gas present at a long distance.
Light Weight
the extremely lightweight design, meets the Requirements of the "Interim Regulations on the Flight Management of UAV" with the Carrier drone, and can perform tasks in airspace below 120m without application of flight.
Highly- Automated
It supports two automatic inspection modes of Area scanning and route inspection, and can Import KML files to GIS routes to generate Inspection tasks. On-site selection allows for Leak scanning in villages or stations.
Highly - Open
It supports exporting inspection reports and Event records through the app, and the SD card Is used to store inspection videos and logs. System integration services are provided to Transmit inspection data and on-site videos to customer's information platform.
| Model | U10 | Detection Subject | Methane (CH4) |
| Measuring Principle | Laser Absorption Spectrum | Detection Laser Class | Class I Eye Safe |
| Resolution | 3 ppm m | Indication Laser Class | Class IIIR No direct sight or instrument observation |
| Response Time | 0.025s | Operating Temperature | -20 ~ 50 C |
| Maximum Detection Distance | 150m | Operaing Humidity | <98%RH, no condensation |
| Concentration Range | 0~50,000 ppmm | Main Unit Dimension | 174 89 163 mm |
| Compatible with UAV Model | DJI M350 Series | Main Unit Weight | 0.7kg |
Application
the drone-based laser methane detector is widely used in the following fields:
Urban Gas Distribution Pipelines:
Detects leaks in gas pipelines to ensure the safety of urban gas supply.
Petroleum and Petrochemical Industries:
Detects methane gas concentrations in refineries, chemical plants, etc., to prevent explosions and other accidents.
Metallurgical and Power Industries:
Detects gas leaks in locations where leaks may occur, ensuring production safety.
Environmental Monitoring:
Monitors methane concentrations in the atmosphere to assess environmental quality and pollution levels.
Other Complex Environments: Inspects pipelines in landfill sites, complex terrain areas, etc.
the drone-based laser methane detector is widely used in the following fields:
Urban Gas Distribution Pipelines:
Detects leaks in gas pipelines to ensure the safety of urban gas supply.
Petroleum and Petrochemical Industries:
Detects methane gas concentrations in refineries, chemical plants, etc., to prevent explosions and other accidents.
Metallurgical and Power Industries:
Detects gas leaks in locations where leaks may occur, ensuring production safety.
Environmental Monitoring:
Monitors methane concentrations in the atmosphere to assess environmental quality and pollution levels.
Other Complex Environments: Inspects pipelines in landfill sites, complex terrain areas, etc.
