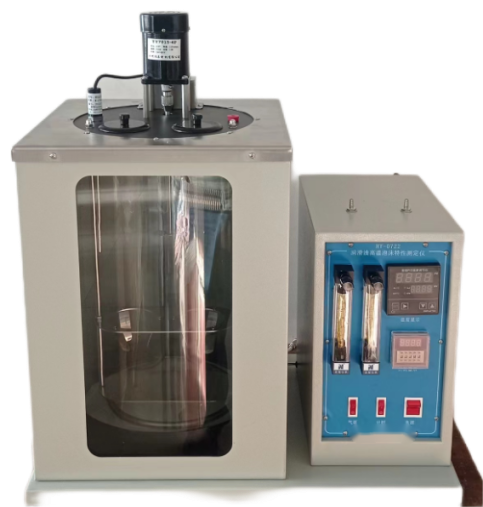

SH126E oil High temp foam tester conforms toASTM D6082 SH/T0722  method requirements. It is suitable for testing the foam tendency and foam stability of oil under the standard conditions.

 lubricating oil high temperature foam characteristics tester is suitable for testing the foam characteristics of lubricating oil at 150℃.

Heat the specimen to 49℃, 30 min after cooling to room temperature, constant temperature measuring cylinder inside the sample and then transferred to the regulation, and heated to 150℃, spreading metal head in dry air, ventilation, 5 min, determine the static foam moments before stop ventilation quantity, sport bubble volume and stop after aeration time amount of static bubble, bubble disappear time and percentage of total volume increase.

Laboratory Equipment High Temperature Lubricating Oil Foam Characteristics Test

Lubricant High Temperature Foaming Characteristic Test Instrument by ASTM D6082

ASTM D6082 Apparatus for High Temperature Foaming Characteristics

150 Degree High Temperature Lubricating Oils Foamstability Foaming Testing Machine ASTM D6082

Technical parameters

 Temperature control mode: imported PID digital display temperature controller

 temperature control accuracy: ±0.1℃

 Heating method: oil bath heating

 Power of the whole machine: 2.5KW

 Working unit: 2 tubes

 flow control: precision flow meter

Working power supply: AC220V/ 50HZ

 temperature range: 150±0.1℃

Power supply	AC(220±10%)V, 50Hz
Applicable standard	ASTM D6082 SH/T0722
Temperature control type	Imported PID digital thermostat
Heating method	Water-bath heating
Power Supply	2.5KW
Temperature control range:	(Room temp.~150)C
Temperature control accuracy:	±0.1C
Work unit	2 Tubes
Flow control	Precision flow meter
Temperature range	150±0.1℃
Instrument size: 380 * 380 * 550mm Weight: 35kg
