| Power Supply: |
8V-36V Wide Voltage |
Network: |
3G/4G WCDMA/EVDO |
|---|
| Type: |

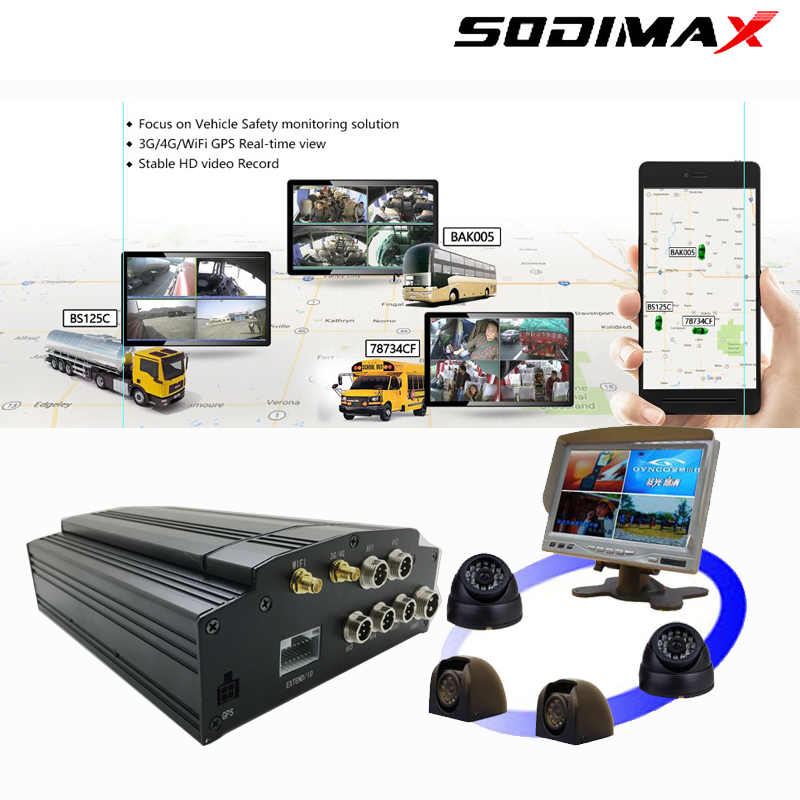

4ch Mobile DVR Real Time Surveillance Solution |
Storage Card: |
Dual SD Max 2*256GB |
|---|
| Alarm: |
6CH Alarm Inputs, 2CH Alarm Output |
Client Software: |
PC and Mobile Phone Supported |
|---|
| Audio Output: |
1 Channel VGA Video Output, 1 Channel Aviation Connector Video Output |
Recording Storage: |
1080P 1.9G/hour/channel; 720P 0.8G/hour/channel |
|---|
| Network Port: |
RJ45 |
Video Compression: |
H.265 |
|---|
| Resolution: |
720P/1080P |
Video Format: |
PAL/NTSC |
|---|
| Main Processor: |
Hi3520DV400 |
|---|
Main Features
* the on-board interface can operate reliably and stably in complex environments
* Video encoding H.265, H.264 is optional
* Support 4G, GPS, WiFi function modules
* Rich peripheral interfaces
* Support UI human-computer interface
* Support dual SD card storage
* Support remote system maintenance
Main Specifications
Item |
Device parameter |
Performance |
System |
Main processor |
Hi3520DV400 |
Operating system |
Embedded Linux operating system |
Operating language |
Chinese/English/Russian |
Operating interface |
Graphical menu operation interface, support mouse operation |
Password security |
Two-level management of user password and administrator password |
Audio
&
Video |
Video standard |
PAL/NTSC |
Video compression |
H.264/H.265 |
Image resolution |
1080P/720P |
Playback quality |
1080P/720P |
Combination |
Various ways |
Decoding capability |
4ch 1080P real time |
Video quality |
1 to 4 levels can be configured |
Screen display |
Support 1, 2, 3, 4 screen display |
Audio Compression |
Not Supported |
Recording method |
Video recording |
Recording & Playback |
Recording mode |
Manual, alarm |
Video bit rate |
4-level picture quality optional |
Audio bit rate |
8KB/s |
Storage media |
Hard Disk+SD card |
Video query |
Search by channel and video type |
Local playback |
One-way, by time |
Firmware upgrading |
Upgrading mode |
Manual upgrade, remote upgrade |
Upgrading method |
USB interface, network |
Interface |
Video input |
4-way 6-pin aviation header interface |
Video output |
1 channel VGA video output, 1 channel aviation head video output |
Alarm input |
4 trigger alarm inputs (four configurable positive/negative triggers) |
Disk interface |
2.5-inch hard drive, up to 2TB |
SD card |
1 SDXC high-speed card (maximum support 512G |
USB interface |
1 USB 2.0 (support full mouse operation, USB delay self-test) |
Ignition input |
1 ACC signal |
Serial port |
1 channel 232 |
LED Indication |
PWR/REC/SD/GPS/VLSS/ALM |
Disk lock |
1 |
GPS |
Supports antenna insertion/removal/short circuit detection |
3G/4G |
Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE |
Others |
Power input |
8~36V DC |
Power output |
12V 2A |
Power consumption |
Standby 3mA
Maximum consumption 30W @12V 2.5A @24V 1.25A |
Working temperature |
-20 - 70℃ |
Storage |
2.8kg |
Dimension |
198Mm*160mm*65mm |
