| Weight: | 47KG |
|---|---|
| Brand Name: | Supply Dewar |
| Capacity: | 55L |
| Condition: | New |
| Color: | Stainless Steel |
| Warranty: | one year |
| Certification: | TPED / ASME |
| Dimension(L*W*H): | 640*640*900 |
| Model Number: | DPL400-55-0.8 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

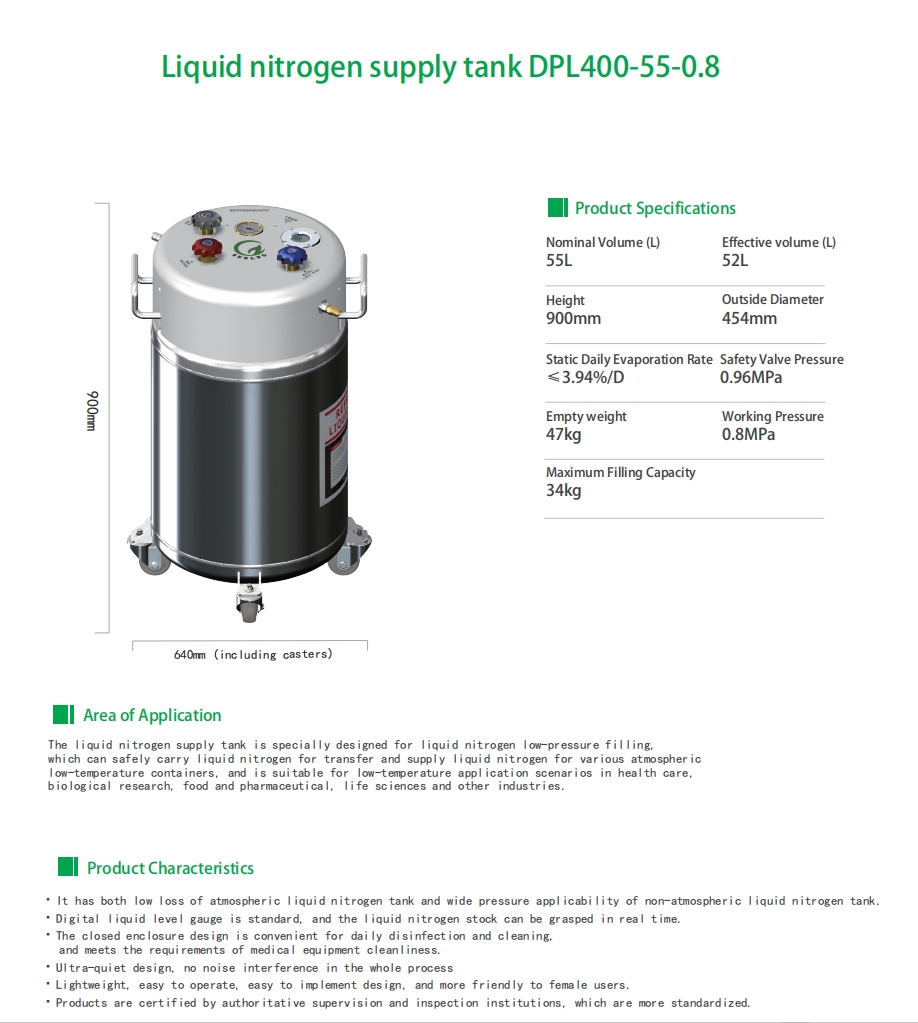

1.Brief Introduction:
the liquid nitrogen supply tank is specially designed for liquid nitrogen low-pressure filling,
Which can safely carry liquid nitrogen for transfer and supply liquid nitrogen for various atmospheric
Low-temperature containers, and is suitable for low-temperature application scenarios in health care,
Biological research, food and pharmaceutical, life sciences and other industries.
2.Techincal parameters:
Nominal Volume (L)
55L
Effective volume (L)
52L
Height
900mm
Outside Diameter
454mm
Static Daily Evaporation Rate
≤3.94%/D
Safety Valve Pressure
0.96MPa
Empty weight
47kg
Working Pressure
0.8MPa
Maximum Filling Capacity
34kg
3.Performance features:
It has both low loss of atmospheric liquid nitrogen tank and wide pressure applicability of non-atmospheric liquid nitrogen tank.
Digital liquid level gauge is standard, and the liquid nitrogen stock can be grasped in real time.
the closed enclosure design is convenient for daily disinfection and cleaning,
and meets the requirements of medical equipment cleanliness.
Ultra-quiet design, no noise interference in the whole process
Lightweight, easy to operate, easy to implement design.
