CINCON DH15W10 DC-DC converter module, DC to DC power converter

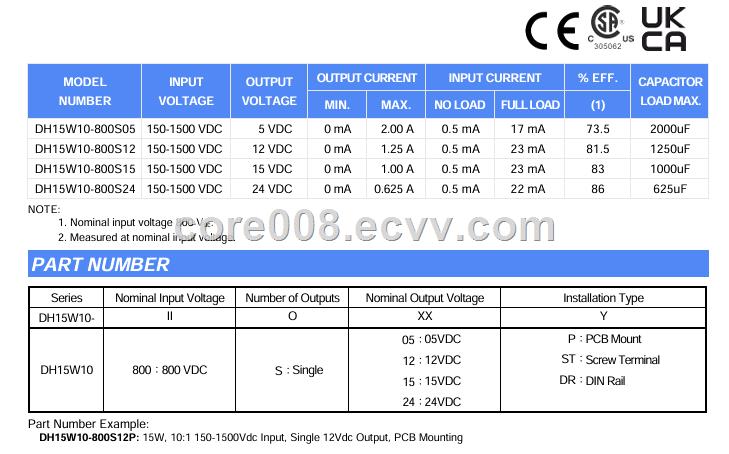

H15W10 is a 15-watt DC-DC converter launched by CINCON, featuring the Following:

Input/Output

Input voltage range: 150~1500VDC, suitable for high-voltage input Scenarios.

Output voltage: Available in multiple specifications such as 5V, 12V, 15V, 24V, etc., it can meet the power supply requirements of different devices.

Performance

Efficiency: up to 86%, maintaining high efficiency even under high-voltage Input.

Isolation voltage: the input and output isolation voltage can reach up to 4000Vac, ensuring safe use.

Operating temperature: -40℃ to +80℃, suitable for various environments.

Safety and Certification

Certification: Passed UL1741, CSA-C22.2 No.107.1, EN62109-1 and other Certifications, meeting international safety standards.

Protection functions: It is equipped with overcurrent protection, Overvoltage protection, undervoltage locking, etc., and also provides input Reverse polarity protection.

Size and Packaging

Dimensions: 3.00 "x2.00" x0.984 ", standard packaging adopted.

Application field

It is applicable to photovoltaic control units, power monitoring systems, and can also be used in industrial equipment, new energy systems, transportation and other fields.
